Product Details

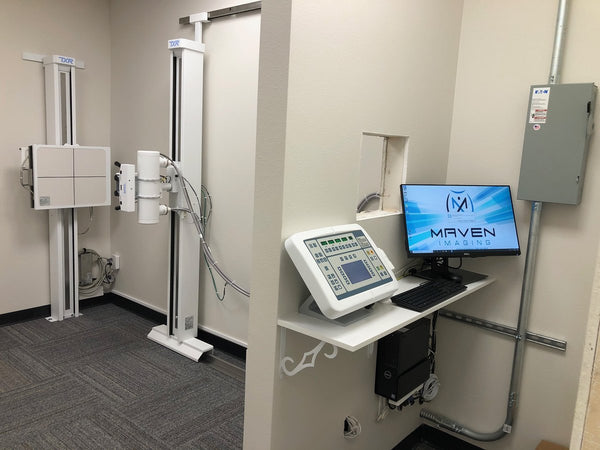

Chiropractic Digital X-Ray System- Flat Panel Cesium DR System 17 x 17 CSI Tethered
17x17 inch CsI Tethered, cassette size DR Flat Panel Detector, with advanced acquisition PatientImage chiropractic software and PACS
System Specifications
17x17 inch CsI Tethered, cassette size DR Flat Panel Detector
- Active area (Real Image Size): 17x17 inch
- Overall Dimensions: 495.5×495.5×15.8mm (19.5x19.5x0.62 inch)
- Weight: 4.3 Kg (9.5 lb)
- Power Consumption: max of 21 Watt
- Carbon Fiber Sensor Protection Plate
- Cesium Iodide (Csl) with Amorphous Silicon (a-Si) Photodiode
- Pixel Matrix: 3040(H)×3036(V)
- Pixel Pitch: 140 μ m
- A/D Conversion: 16 bit
- X-ray Voltage Range: 40-150 kVp
- Wired Interface: Gigabit Ethernet (1000BASE-T)
- Control Box with AC100-240V, 50/60Hz input power, and DC24V 2.5A 60W(MAX) output power
PatientImage Acquisition Software
- Superior Image Quality
- Exam-specific algorithms image processing
- Automatic image optimization
- Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
- True size for printing
- Resend / Reprint image
- Send/Print queue management
- User-friendly touch GUI
- Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi Layout, etc.
- Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc.
- Customized functions and various themes
User Interface
- User-Friendly Interface Supporting Touch Screen Functions
- One Screen to Access All Functions
- Same Interface for the Acquisition Software and Viewers
- Image Processing With Advanced Algorithm
- Fast Processing with Superior Image Quality
- Intelligent Algorithms for Sharp Edges without noise amplification
- Automatic image optimization
PatientImage Chiro PACS
PatientImage Chiro Server is a complete and cost-effective Imaging solution that provides imaging departments with a scalable and upgradable solution to archive patient studies. Includes 10 concurrent users & Chiropractic Tools.
Workstation (Min. Configuration, subject to change):
- i5 Intel Core
- Windows 10 Professional
- 1 TB Hard Disk
- 8 GB RAM
- 24 inch Monitor
- Workstation pre-configured and with the Software installed
*This product has been permanently discontinued.
Replacement products available.
