CDR X-Ray System
CDR X-Ray System
CDR X-Ray System

CDR X-Ray System

$43,995.00 Sale

What more options?
Lease/Finance $728.91/month*
Click Here to Apply
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

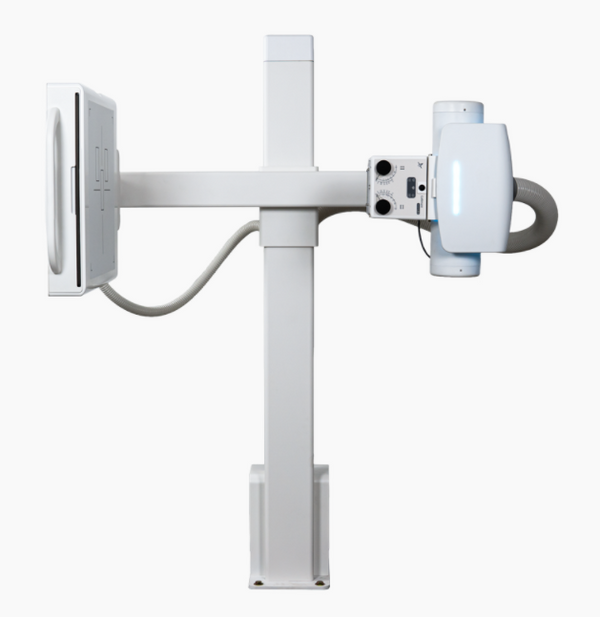

CDR U-Arm Straight Arm X-Ray System

Straight-arm Stationary X-Ray System - Allows for Fixed 40" SID vertical positioning in a fully counterbalanced system.

Allows for customized room limits allowing for installation into small spaces

  • Electric lock for vertical movement
  • LED bar indicator showing system power status
  • Fixed 40" SID for vertical positioning and imaging
  • Removable grid
  • Allows for installation and full movement in a standard 8' ceiling height
  • Fully enclose grid cabinet supporting an 18x18 oversized grid to allow for full coverage of 17x17 digital imaging receptors
  • 103 LPI, 10:1 ratio, variable focal distance 40-72" removable grid

17x17 inch Cesium CsI Tethered, cassette size DR Flat Panel Detector, with advanced acquisition PatientImage software with Chiropractic Toolsets and PACS

System Specifications

17x17 inch CsI Tethered, cassette size DR Flat Panel Detector

  • Active area (Real Image Size): 17x17 inch
  • Overall Dimensions: 495.5×495.5×15.8mm (19.5x19.5x0.62 inch)
  • Weight: 4.3 Kg (9.5 lb)
  • Power Consumption: max of 21 Watt
  • Carbon Fiber Sensor Protection Plate
  • Cesium Iodide (Csl) with Amorphous Silicon (a-Si) Photodiode
  • Pixel Matrix: 3040(H)×3036(V)
  • Pixel Pitch: 140 μ m
  • A/D Conversion: 16 bit
  • X-ray Voltage Range: 40-150 kVp
  • Wired Interface: Gigabit Ethernet (1000BASE-T)
  • Control Box with AC100-240V, 50/60Hz input power, and DC24V 2.5A 60W(MAX) output power

PatientImage Chiro Acquisition Software

  • Superior Image Quality
  • Exam-specific algorithms image processing
  • Automatic image optimization
  • Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
  • True size for printing
  • Resend / Reprint image
  • Send/Print queue management
  • User-friendly touch GUI
  • Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi Layout, etc.
  • Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc.
  • Customized functions and various themes

User Interface

  • User-Friendly Interface Supporting Touch Screen Functions
  • One Screen to Access All Functions
  • Same Interface for the Acquisition Software and Viewers
  • Image Processing With Advanced Algorithm
  • Fast Processing with Superior Image Quality
  • Intelligent Algorithms for Sharp Edges without noise amplification
  • Automatic image optimization

PatientImage PACS

PatientImage Server is a complete and cost-effective Imaging solution that provides imaging departments with a scalable and upgradable solution to archive patient studies. The Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or the internet.

Includes 10 users & Chiropractic Tools.

Workstation (Min. Configuration):

  • i5 Intel Core
  • Windows 10 Professional
  • 1 TB Hard Disk
  • 8 GB RAM
  • 21.5 inch Monitor -See below for 24" upgrade Special
  • Includes free upgrade to a 24" Touchscreen Monitor with special
  • Workstation pre-configured and with the Software installed
  • Includes 5 year parts warranty on DR Panel and software
  • Includes 3 year warranty from Dell for computer workstation
