Maven Digital Straight Arm with CPI Generator – MavenImaging

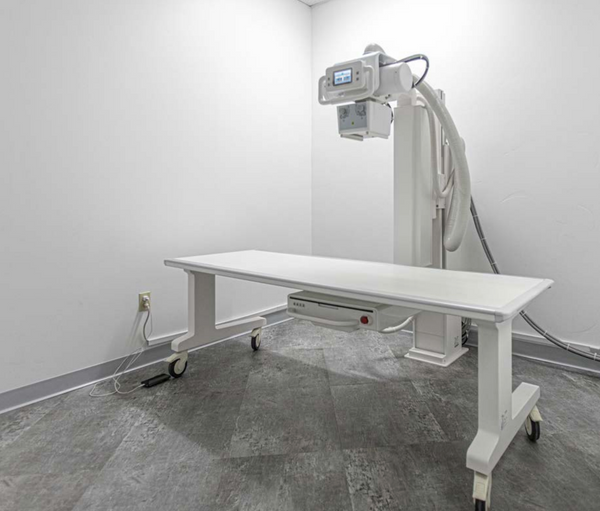

Maven Digital Straight Arm with CPI Generator

Regular price $59,500.00 Sale

What more options?
Lease/Finance $985.8/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

Straight Arm

  • Source to Image: 1000 - 1800mm (Continuously Adjustable)
  • Arm Rotation Angle: Arms tilts 120°left or right
  • Vertical Travel: 400 - 1700mm
  • Tube Rotation: ±90°

Detector Tilting: ±45°

X-Ray Generator: 32 kW CPI CMP 200

  • High Frequency x-ray generator up to 400 kHz output frequency
  • Membrane console with preprogrammed anatomical programs
  • Automatic Calibration
  • GenWare service utility
  • 125kV, 400mA capable
  • Input power:1Ф 208V, 3Ф208V or 480V
  • (please specify requirements at time of order)

 X-ray Tube

  • Model: Toshiba E7242
  • Maximum kV: 125
  • Anode Heat Capacity: 200 kHu
  • Focal Spots: 0.6,1.5
  • Stator type: XS-RA

Anti-Scatter X-ray Grid:

  • Materials: Carbon Interspaced with Carbon Fiber for superlative image quality
  • 103 Line Pair
  • Ratio: 10:1

Cables: Claymont High Voltage Cables

  • Length: 20 feet (12 meters)
  • Terminated at both ends
  • One Pair

1 year Labor Warranty

5 Year Parts Warranty
