TXR GP9- UPRIGHT AND EXTREMITY- Tilting bucky – MavenImaging


Regular price $24,500.00 Sale

What more options?
Lease/Finance $405.92/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

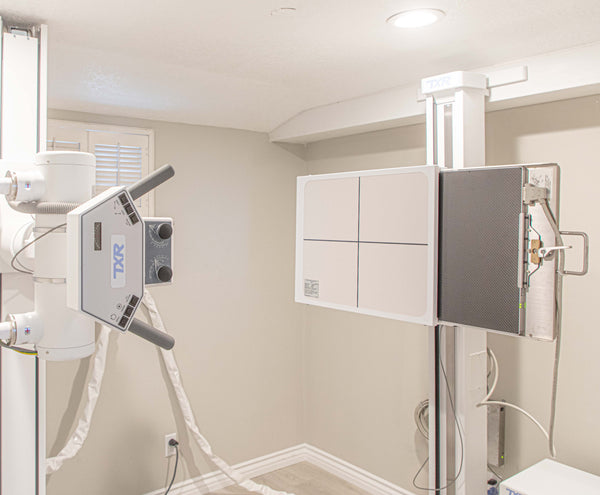

VertEx Tilting Upright and Extremity System with 32 kW High-Frequency Generator

SHF 310AP 32 kW, 400 mA, 125 kVp, 500 mAs High-Frequency Generator, 1-phase 208/240 VAC

  • • 400 mA, 125 kVp (400 mA @ 80 kVp)
  • • Seventeen mA stations: 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 180, 200, 250, 320, 400
  • • 0.001 to 10 second time range
  • • 0.1 to 500 mAs • kVp selection, 40 to 125 kVp in 1 kV increments • Digital displays • Automatic line compensation • APR, Anatomical Programming • Table mount
  • • Exposure hand switch
  • • UL/CE/FDA Listed
  • • For Operation on 1 Phase 208/240 VAC

 Floor to Wall Non-Rotate Tubestand, Medical

  • • Fits in ceiling heights of 88" - 121"
  • • Vertical travel 11.75" - 76.75"
  • • 75.2" Longitudinal Travel with 8' floor track
  • • 21" tube arm (focal spot to the front of column 23")
  • • 32.2" focal spot from the wall
  • • Platform tube mount, angulation dial, and operator handle
  • • Manual lock for tube angulation
  • • Electric lock for longitudinal and vertical travel
  • • 8-foot tracks • UL Classified operates from 24 VDC

 Wall stand with Tilt

  • • Tilting wall stand features an electric vertical lock and mechanical tilt lock; RH load standard
  • • Vertical travel: 15.5"-79"
  • • Tilt mechanism +90° -45°
  • • 17”x17” grid cabinet with front panel
  • • Heavy-duty manual cassette tray
  • • 103 line, 10:1 ratio, 40" to 72" focal range grid

 Tube, 200,000HU, 0.6-1.5, 180 deg Best Focal Point

 Certified Manual Collimator with laser light, LED, 125kVP

 25 ft HV Cables

 For power lines BELOW 208 VAC, the auxiliary boost transformer is required

1-phase Step-up Transformer, 208-240V

 ** In order to obtain both 72" to the wall receptor and center to horizontal wall receptor, the exact placement of 8' rail is required **

 Option to add DIgital DR panel and Patient Image Software, Computer, and Monitor

14 x 17 Wireless DR Panel


17 x 17 Tethered DR panel

Maven Imaging provides room drawing as part of the purchase of any X-ray room installation. Complete room layout with all the electrical requirements and information to pass to a physicist for the shielding report.

Call Maven Imaging sales@mavenimaging.com or 1-800-948015

Download PDF

Maven Imaging Sample Chiro room layout


*This product has been permanently discontinued.

Replacement products available.
