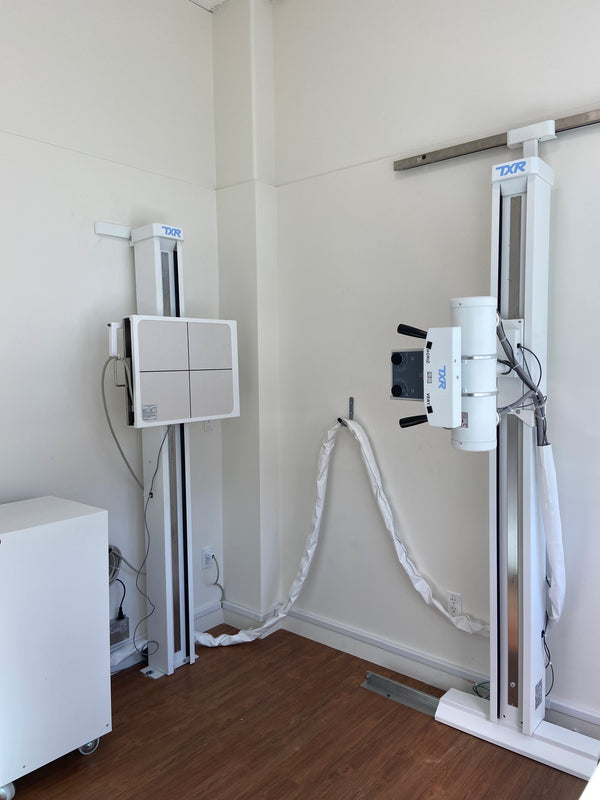

TXR Chiro Upright CH-1 14"x17" Upright System With F/W Tube Stand, Wall Stand and High Frequency Generator

Regular price $19,000.00 Sale

What more options?
Lease/Finance $314.79/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

CH-1 14"x17" Upright System With F/W Tube Stand, Wall Stand, and High-Frequency Generator

SHF 310AP 32 kW, 400 mA, 125 kVp, 500 mAs HF Generator

  • • 400 mA, 125 kVp (400 mA @ 80 kVp)
  • • Seventeen mA stations: 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 180, 200, 250, 320, 400
  • • 0.001 to 10 second time range
  • • 0.1 to 500 mAs
  • • kVp selection, 40 to 125 kVp in 1 kV increments
  • • Digital displays • Automatic line compensation
  • • APR, Anatomical Programming
  • • Table mount
  • • Exposure hand switch
  • • UL/CE/FDA Listed
  • • For Operation on 1 Phase 208/240 VAC

Floor to Wall Non-Rotate Tubestand, Chiro

  • • Fits in ceiling heights of 88" - 121"
  • • Vertical travel 11.75" - 76.75"
  • • 39.2" Longitudinal Travel with 5' floor track
  • • 8" tube arm (focal spot to front of column 10")
  • • 19.2" focal spot from wall
  • • Platform tube mount, angulation dial and operator handles
  • • Manual lock for tube angulation
  • • Electric lock for longitudinal and vertical travel
  • • 5 foot tracks • UL Classified, operates from 24 VDC

Wall stand with grid cabinet

  • • Floor to wall mounted counterbalanced column
  • • Minimum ceiling height: 86" from floor
  • • Vertical travel: 9-3/4" to 72-3/4"
  • • Electric locks (24VDC 2 Amp required)
  • • Grid cabinet with heavy duty tray
  • • 10:1, 103 line grid
  • • Operates on 120 VAC

Tube, 140,000HU, 1.0-2.0, 90 deg

Certified Manual Collimator with laser light, LED, 125kVP

15 ft HV Cables

SOLID 208 VAC or above power line required. For power lines BELOW 208 VAC, auxiliary boost transformer is required,

Manual locks for tube angulation
* Focal spot to wall distance is 19.2". You will not be able to put the generator in the common corner of the room as the wall stand receptor will hit the top of the generator cabinet.
* With 14" arm (optional), a focal spot to wall distance is 23.2"



Digital DR panel, Patient Image software, Computer, and Monitor not Included in price

Optional DR panel, Patient Image software, Computer and Monitor. * DR Panel not included

14 x 17 Wireless DR panel

17 x 17 Tethered DR panel

Download PDF

Maven Imaging Sample Chiro room layout


*This product has been permanently discontinued.

Replacement products available.
