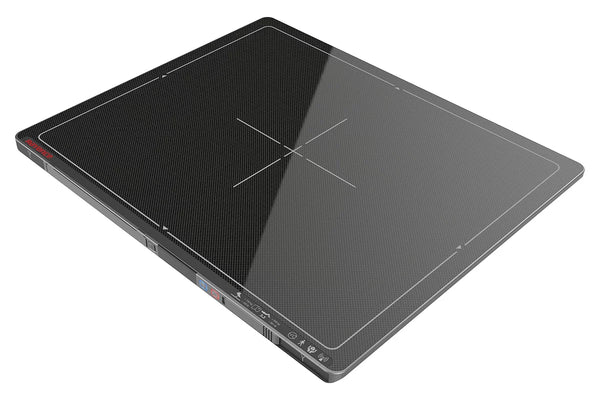

Rayance Xmaru 1417WCC - 14x17 Wireless DR Flat Panel Detector

Regular price $21,500.00 Sale

What more options?
Lease/Finance $356.21/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

PROVIDING PATIENT THROUGHPUT IN YOUR HOSPITAL AND BEYOND ​

The ergonomically designed C-Series Cesium Iodide and Gadolinium Oxysulfide wireless detectors are designed to offer new levels of handling, functionality and exceptional diagnostic image quality in the X-ray room and beyond.

The compact and lightweight Xmaru 1417 Wireless Digital Flat Panel Detectors are well designed to satisfy the daily diagnostic needs of the most demanding user.

  • DICOM File Management and Printing
  • Image Magnification
  • Image Stitching CD recording with CD viewer
  • Measuring the Length and Angles of the Image
  • Adding Annotation Text, Graphics and Electronic Markers to an Image

Xmaru 1417WCC Wireless Flat Panel Detector:

  • Cassette Size Dimensions (W x L X H ) 460 x 384 x 15.4 mm
  • CsI: Cesium Iodide (scintillator)
  • a-Si: Amorphous Silicon with TFT (Single panel)
  • Weight: 6.6lbs (Including Battery)
  • Window Material: Carbon-fiber (a shock, vibration and scratch resistant composition)
  • Pixel Pitch: 140µm
  • Total Pixel Matrix: 2500 x 3052 pixels •
  • Total Pixel Area: 350.0 x 427.3 mm
  • Energy Range: 40 - 150 kVp
  • A/D Conversion: 14/16 bits
  • Preview Time: < 2.0 sec (2x2 binning)
  • Manual Mode and Auto Trigger (AED) Mode
  • Wireless: Built in Access Point (AP) with 25' range
  • Data Transfer: 802.11 a/g/n/ac/ Wireless LAN, up to 867 Mbps, 1Gbps Ethernet

Batteries & Charger:

  • Two (2) Lithium Ion rechargeable batteries
  • 900 images (@ cycle time: 15s). lasting 4 hours
  • Capacity: 3400 mAh
  • Charging Time: 3 hours

Mobile Battery Charger:

  • Dimension: 280 x 160 x 17
  • Weight: 0.66 lbs
  • Input: 18 VDC
  • Output: 12.6 VDC

Mobile Battery Charge Adapter:

  • Dimension: 125 x 62 x 34
  • Weight: 0.88 lbs
  • Input: 80-264 VAC, 47~63 Hz, 1.5A
  • Output: 18 VDC, Max 3.34A

Wireless Network Router Included

Key Features:

  • Medical Specific Exposure Exam List
  • DICOM Modality Worklist, DICOM Storage, DICOM Send, DICOM Print
  • HL7 Receiver
  • Image Stitching feature (Optional)
  • Low Exposure Optimization
  • Exposure Index
  • Analysis Statistics Report (ASR): tracks image acceptance, rejections, retakes and deletion
  • CD/DVD or thumb drive burning with Mini Viewer
  • Annotations including Text, Distance, Measurements, Angles, Comments, Electronic Markers
  • W/L, Flip, Rotate, Zoom, Pan, Invert Greyscale, Image Magnification
  • Basic security features - customized technologist log in/log out & user restrictions
  • Enhanced image processing parameters
  • Wireless signal on wireless panel
  • Detector battery indicator
  • Selectable GPR (Grid Pattern Removal) applications
  • Comparison Mode - Click and drag images to view them side by side
  • Send to multiple mini PACS destinations having different compression formats

MiniPACS

  • Includes Ten (10) concurrent licenses, which can be upgraded up to twenty (20)
  • Requires no static IP addresses on workstations other than on the acquisition workstation
  • Comes with annotations and markers that can be applied and viewed by any user

Specialty Measurement Tools:

Acquisition Workstation (Subject to change)

  • OptiPlex 7080/7090 SFF MLK
  • Intel vPro Technology Enabled
  • Intel Integrated Graphics, Dell OptiPlex
  • 2.5 inch 1TB 7200rpm Hard Disk Drive
  • 16GB (2x8GB) 2666MHz DDR4 Memory
  • Intel® Core™ i5-9500 (6 Cores/9MB/6T/3.0GHz to 4.4GHz/65W); supports Windows 10/Linux
  • 2nd Intel Gigabit NIC PCIe Card (Low Profile)
  • 2nd 1TB 2.5 inch SATA (7200 Rpm) Hard Drive, OptiPlex
  • TPM Enabled
  • OptiPlex System Power Cord
  • Bracket for 2.5 inch Hard Drive Disk, Mini Tower, OptiPlex
  • Cyberlink Media Suite Essentials for Windows 10 and DVD drive
  • (without Media)
  • 8x DVD+/-RW 9.5mm Optical Disk Drive
  • ODD Bezel, Small Form Factor
  • 2nd 2.5” HDD Caddy with Cable Small From Factor
  • Intel Core i7 vPRO Label
  • Dell Developed Recovery Environment
  • Waves Maxx Audio
  • OptiPlex 7080/7090 Small Form Factor with 200W up to 92% efficient Power Supply
  • Black Dell KB216 Wired Multi-Media Keyboard English
  • Black Dell MS116 Wired Mouse
  • Win 10 Pro 64 English, French, Spanish
  • ProSupport for Dell Data Protection Endpoint Security Suite Enterprise, 1 Year
  • ProSupport: Next Business Day Onsite 3 Years
  • ProSupport: 7x24 Technical Support, 3 Years
  • Dell Limited Hardware Warranty Plus Service
  • *Specifications are subject to change without notice

Xmaru RadViewer Viewing License

  • CD/DVD Burning with Mini Viewer
  • Annotations including Text, Distance, Measurements, Angles,
  • Comments, Electronic Markers etc.
  • Image Manipulations Flip, Rotate, Zoom, Pan, Invert Greyscale,
  • Window and Contrast Level, etc.

RAYENCE STANDARD WARRANTY

  • Sixty (60) months on manufacturer defects on Rayence Flat Panel Detector
  • Sixty (60) months on Rayence acquisition software to include updates and remote technical support.
  • Thirty six (36) months on Dell manufactured computer PC and monitor. (Supported by Dell)
  • Twelve (12) months on router manufacturer warranty (if applicable)
  • Six (6) months on battery from manufacture defects (if applicable)
