Product Details

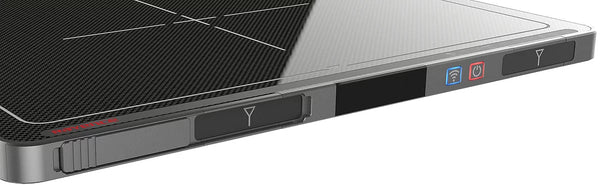

Key Features of the Xmaru 1012WCC Detector
- Compact & Lightweight Design: Cassette-sized dimensions (12.9" x 10.6" x 0.6") and only 3.7 lbs (with battery), making it easy to handle in any clinical setting.
- Exceptional Durability: Carbon-fiber unibody construction resists shocks, vibrations, and scratches, ensuring long-term reliability.
- High Resolution Imaging: Features a 127µm pixel pitch, 2,264 x 1,752 pixel matrix, and an active area of 11.5" x 8.9" for crystal-clear imaging.
- Advanced Technology: Includes a CsI scintillator with an amorphous silicon readout layer, delivering efficient energy conversion for high-quality images.
- Rapid Performance: Preview time is <2.0 seconds, with Auto-Trigger (AED) technology that enhances workflow efficiency.
- Wireless Connectivity: Built-in access point with a 25' wireless range, ensuring flexible use across various rooms.
- Efficient Battery System: Equipped with three rechargeable lithium-ion batteries, lasting up to 4 hours (900 images) with a 2.5-hour charging time.
Enhanced Software Functionality
- Advanced Imaging Tools: Includes annotations (text, angles, distance, and measurements), electronic markers, and enhanced image processing parameters like greyscale inversion, zoom, and magnification.
- Preloaded Study Features: Optimized settings for podiatry exams (e.g., 2-view foot or 4-view ankle).
- Statistical Insights: Generates detailed reports on image acceptance, rejections, and retakes with the Analysis Statistics Report (ASR).
- DICOM Capabilities: Supports Modality Worklist, Storage, Send, and Print, with tools for burning CD/DVDs or thumb drives equipped with a mini viewer.
- Comparison Mode: Quickly view and compare images side by side with click-and-drag functionality.
Mini-PACS Highlights
- Concurrent Licenses: Comes with 10 licenses (expandable to 20), offering collaborative workflows across teams.
- User-Friendly: Requires no static IP addresses for workstations (other than the acquisition workstation).
- Specialty Measurement Tools: Enhance diagnostic accuracy with robust built-in measurement functions.
Workstation Hardware Specifications
- Dell OptiPlex Series with Intel Core i5 CPU, 16GB DDR4 memory, and a 1TB NVMe SSD for fast data handling.
- Additional 1TB SATA hard drive for data storage and a DVD+/-RW optical drive.
- Comes preloaded with Windows 11 Pro and offers ProSupport (7x24 technical support and on-site service for 3 years).
- Includes a Dell 24” Touch Monitor (1920 x 1080 resolution) for easy and precise interaction with imaging data.
Custom Orthoposer Features
- ADA-Friendly Design: Built at a lowered 3.5" height for wheelchair access, potentially qualifying for a tax credit of up to $5,000 (consult your tax advisor for details).
- Ease of Use: Single-directional movement with a lateral slot and built-in detector tray for straightforward AP/DP positioning.
- Patient Support Rail: Allows access from the front or side, providing exceptional comfort and accessibility for all patients.
Why Choose Xmaru 1012WCC Wireless Flat Panel Detector?
