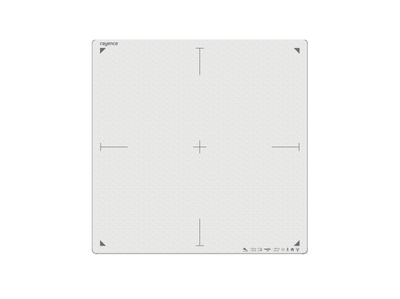

1717WCE-HR Wireless Flat Panel Detector

Designed to redefine precision and efficiency in diagnostic imaging, the 1717WCE-HR Wireless Flat Panel Detector is the ultimate solution for radiology professionals seeking advanced functionality combined with user-friendly features. Equipped with cutting-edge technology, it delivers exceptional imaging quality and reliable performance for diverse clinical applications.

Uncompromised Imaging Quality

High-Performance Scintillator – Utilizes Cesium Iodide for exceptional image sensitivity and clarity.
Amorphous Silicon Panel with TFT – Ensures consistent and precise image capturing with a digital quantum efficiency (DQE) of at least 70%.
Superior Resolution – Total Pixel Matrix of 4302 x 4302 pixels with a pixel pitch of 100μm for immaculate detail.
Wide Energy Range (40 - 150 kVp) – Compatible with diverse imaging procedures across healthcare facilities.

Compact and Ergonomic Design

Lightweight and portable, weighing just 7.1 lbs (without battery), ensuring ease of use and handling across medical settings.
Slim dimensions of 460 x 460 x 15 mm, ideal for seamless integration into existing workflows without the bulk.

Enhanced Connectivity and Workflow

Wireless Freedom – Built-in Access Point (AP) enabling wireless operation with a 25' range, eliminating cable management challenges.
Fast Data Transfer – Reliable connectivity with 802.11 a/g/n/ac Wireless LAN and optional 1Gbps Ethernet.
Optimized DICOM Functionality – Includes DICOM Modality Worklist, DICOM Storage, DICOM Send, and DICOM Print for seamless communication with existing systems.
HL7 Receiver – Streamlines workflow integration while enhancing information accessibility.

Long-Lasting Battery Life

Includes two rechargeable lithium-ion batteries for up to 16 hours of operation, sufficient for capturing 3,000 images at a 15-second cycle.
Battery charging time is only 3 hours, ensuring minimal downtime with a mobile charger included.

Advanced Imaging Features

Image Stitching (Optional) – Combine multiple captures to create a broader field of view.
Exposure Optimization – Achieve low-dose imaging without compromising quality.
Comparison Mode – View images side-by-side for quick and efficient analysis.
Enhanced Image Processing – Features Flip, Rotate, Zoom, Pan, Greyscale inversion, magnification, and more.
Annotations and Measurements – Add text, comments, markers, angles, and measurements directly onto images.
Grid Pattern Removal (GPR) – Adjustable applications tailored for better image visualization.

Integrated MiniPACS

Includes up to 10 concurrent licenses (expandable to 20), offering flexibility for multi-user environments.
Annotations and markers accessible by any user for seamless collaboration.
Specialty measurement tools cater to specific diagnostic needs.

Robust Acquisition Workstation

Powered by Dell OptiPlex Series technology with advanced processing capabilities:
- Intel Core i5 CPU
- 16GB DDR4 memory with NVMe SSD and extended SATA storage options.
- Win 11 Pro 64-bit for a user-friendly interface.
- Includes a high-resolution Dell 24” Touch Monitor (1920 x 1080) for intuitive operation.
Built to last with ProSupport 3-Year Warranty for technical and onsite support.

Why Choose the 1717WCE-HR?

The 1717WCE-HR Wireless Flat Panel Detector empowers radiology professionals with unmatched efficiency, reliability, and precision. Offering a comprehensive set of tools, from image analytics to mobility and connectivity, this detector ensures a seamless diagnostic experience for both physicians and patients.

Rayence 1717WCE (HR) DR PKG
