Product Details

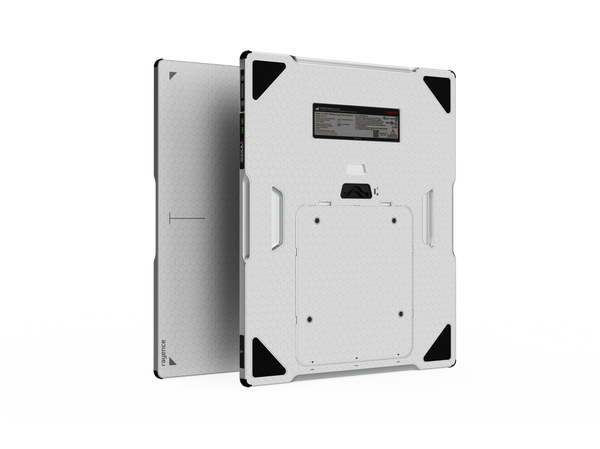

1417WCE-HR Wireless Flat Panel Detector
The 1417WCE-HR Wireless Flat Panel Detector is a cutting-edge x-ray imaging solution designed to deliver unparalleled performance and precision for medical applications. This 3rd generation detector incorporates advanced technology for high-resolution imaging, efficient workflows, and maximum durability under demanding conditions.
Key Features
- Crystal-Clear Resolution: Achieve exceptional image quality with a pixel pitch of 100μm and a Cesium Iodide scintillator, optimized for accurate diagnoses.
- Low Dose, High Efficiency: Designed for dose reduction with Rayence Core CsI technology, ensuring patient safety while maintaining high DQE (minimum 70%).
- Wireless Convenience: Built-in Access Point (AP) with a 25' range and data transfer via 802.11 a/g/n/ac Wireless LAN or optional 1Gbps Ethernet.
- Next-Gen Durability: Glass-free design enhances durability, withstanding drop heights of up to 1.5m and meeting U.S. Department of Defense MIL-STD-810G standards.
- Lightweight Design: Weighing only 5.5 lbs (without battery), it’s easy to handle and position in various medical imaging scenarios.
- Long Battery Life: Dual lithium-ion batteries provide up to 16 hours of operation, allowing for 3,000 images at a 15-second cycle before needing a recharge.
Advanced Imaging Capabilities
- Enhanced Image Processing: Includes features like advanced W/L, flip, zoom, and rotate for optimal image manipulation.
- Selectable Modes: High-resolution 100µm mode or 140µm high SNR mode for diagnostic specificity across different applications like extremities and chest imaging.
- Analysis Statistics Reporting (ASR): Tracks image acceptance rates, rejections, and retakes for better workflow management.
- Comparison Made Simple: View side-by-side comparisons of images for detailed evaluation with the "click and drag" functionality.
- Image Stitching (Optional): Ideal for large-area imaging requirements.
Comprehensive Software & Connectivity
- DICOM Compliance with Modality Worklist, Storage, Send, and Print ensures seamless integration with PACS.
- Features advanced annotations, electronic markers, and distance measurements for precise diagnostic reporting.
- MiniPACS software included with 10 concurrent licenses (expandable to 20), offering annotations and measurement tools for all users.
- No static IP requirements for added flexibility across devices and workstations.
Acquisition Workstation
Outfitted with a high-performance Dell OptiPlex system featuring Intel Core i5 CPU, 16GB DDR4 memory, 1TB NVMe SSD, and Windows 11 Pro. Includes a sleek 24" Dell P2418HT Touch Monitor for intuitive operation.
Unmatched Warranty Coverage
Enjoy peace of mind with a 5-year WRAP program, offering full coverage for all Rayence DR models, including one claim per year for panel replacement. This ensures minimal downtime and uninterrupted workflow for your medical practice.
Applications
Whether you’re conducting routine imaging or specialized diagnostics, the 1417WCE-HR Wireless Flat Panel Detector delivers precision, efficiency, and reliability for any medical imaging environment.
