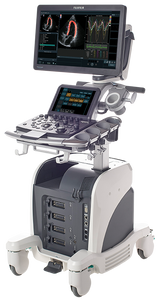

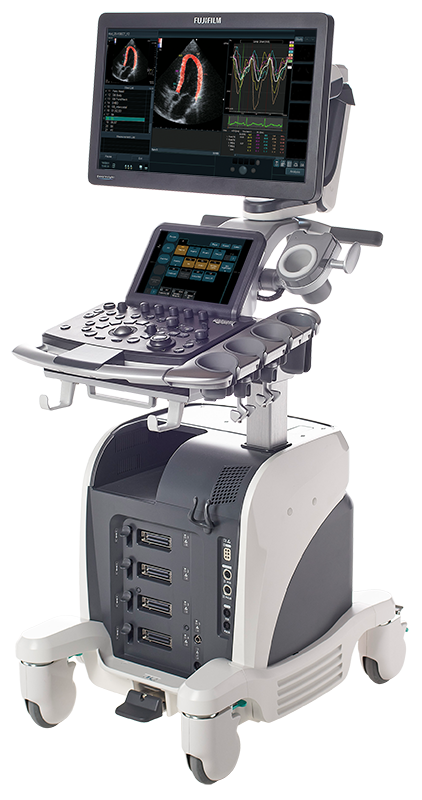

Fujifilm Ultrasound - Cardiovascular Ultrasound Arietta 650DI

The ARIETTA 650DI represents a significant leap forward in cardiovascular imaging, engineered to provide clinicians with the clarity needed for critical diagnostic decisions. At the heart of this system lies Fujifilm’s "DeepInsight" technology, a sophisticated imaging capability that intelligently filters noise to reveal tissue structures with exceptional precision. This new-generation ultrasound system is built to handle the rigorous demands of daily practice, offering a seamless workflow that allows medical professionals to focus entirely on patient care. By combining high-definition visualization with an intuitive, ergonomic design, the ARIETTA 650DI ensures that every examination is conducted with efficiency and clinical confidence.

At the core of the Arietta 650DI is DeepInsight technology, a sophisticated image enhancement solution that filters out noise to reveal critical diagnostic details. By extracting only the necessary information from vast datasets, the system produces sharp, high-definition images that allow clinicians to visualize fine tissue structures with unprecedented clarity. This capability is essential for confidently assessing cardiovascular health, even in challenging cases where subtle details might otherwise be obscured.

Overview:

• DeepInsight Technology: Experience superior image quality through advanced cognitive technology that distinguishes between signal and noise. This feature delivers pure, high-contrast images, enabling the visualization of fine cardiovascular details often obscured in standard exams.
• Specialized Cardiovascular Imaging: Tailored specifically for cardiac and vascular assessments, the system provides optimized presets and tools that support accurate diagnosis of complex heart conditions and vascular diseases.
• Streamlined Clinical Workflow: Designed for the modern medical practice, the interface reduces keystrokes and simplifies complex measurements. This efficiency minimizes exam times and reduces operator fatigue during high-volume shifts.
• Ergonomic System Design: The hardware is constructed for flexibility and ease of movement, fitting effortlessly into various clinical environments, from private practices to busy hospital wards.
• Diagnostic Confidence: With stable, high-fidelity imaging, clinicians can make decisive diagnoses faster, improving patient outcomes and reducing the need for repeat scans.

Technology Imaging:

• DeepInsight Technology: Utilizes advanced algorithms to remove noise and enhance signal quality, delivering clear representations of fine tissue structures.
• High-Definition Imaging: Provides the visual detail necessary for confident cardiovascular assessments, revealing subtleties that standard imaging might miss.
• Ergonomic Design: Engineered to minimize operator fatigue with adjustable monitors and control panels, ensuring comfort during extended scanning sessions.
• Advanced Diagnostic Applications: Equipped with a suite of tools designed specifically for cardiovascular analysis, supporting accurate and safe diagnosis.
• Streamlined Workflow: Innovative functions and an intuitive interface help reduce exam times without compromising diagnostic quality.

Advanced and unique probes:

• Dedicated Cardiovascular Focus: Built from the ground up for cardiologists, the system integrates specialized software and hardware that simplify complex cardiac assessments. This tailored approach reduces exam times while maintaining the clinical depth necessary for critical evaluations.
• Advanced Transducer Technology: Equipped with a suite of unique, high-performance probes, the ARIETTA 650DI ensures optimal signal transmission. These probes are designed to navigate difficult acoustic windows, providing consistent, high-resolution images across a diverse patient population.
• High-Definition Hemodynamics: Experience superior sensitivity in blood flow visualization. The system captures subtle nuances in hemodynamics, enabling precise evaluation of valvular function and wall motion abnormalities with absolute clarity.
• Enhanced Diagnostic Confidence: The sophisticated imaging architecture reduces noise and artifacts, delivering crisp, reliable visuals that allow for the immediate detection of pathologies, from routine check-ups to critical interventions.

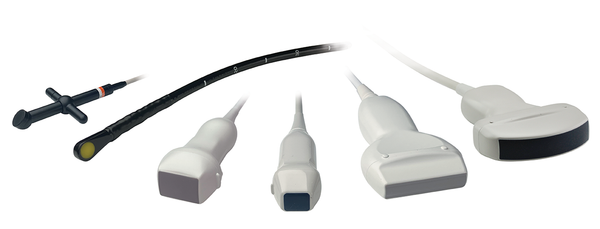

Transducer Technology:

The ARIETTA 650DI represents a specialized approach to cardiac imaging, engineered with direct input from the clinicians who use it every day. Because it is designed by cardiologists for cardiologists, this system intuitively addresses the nuanced challenges of modern practice, ensuring that diagnostic precision is never compromised by technical limitations. The platform empowers clinicians to make critical decisions with speed and confidence, bridging the gap between routine exams and complex pathological assessments. By prioritizing image clarity and workflow efficiency, the ARIETTA 650DI allows medical teams to focus entirely on the patient rather than the parameters of the machine.

This system is equipped with advanced transducer technology specifically developed to handle the diverse and expanding range of patient body types seen in today's clinical environments.

• Comprehensive Patient Coverage: From pediatric cases to difficult-to-scan bariatric patients, the system maintains exceptional image fidelity across a broad spectrum of body types.
• Specialized Transducer Technology: Access a suite of advanced and unique probes tailored for high-stakes cardiac assessments, ensuring you have the right tool for every anatomical challenge.
• Enhanced Diagnostic Confidence: High-resolution imaging capabilities allow for the precise visualization of fine structures and hemodynamic flows, reducing the need for repeat scans.
• Intuitive Clinical Workflow: The interface and control layout reflect the natural progression of a cardiac exam, minimizing keystrokes and streamlining the path to diagnosis.
• Ergonomic Probe Design: The transducers are crafted to reduce operator strain during prolonged scanning sessions, prioritizing the physical well-being of the sonographer while maintaining steady image acquisition.

S11

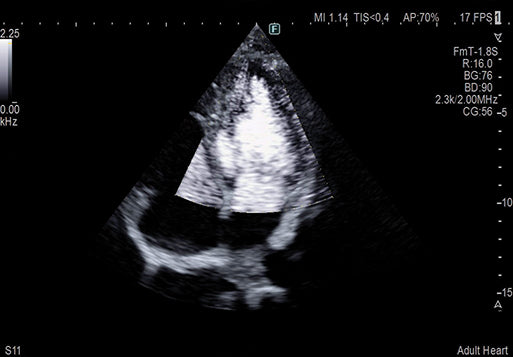

Single Crystal Adult Transducer

• Array Type: Phased

• Frequency Range: 5 – 1 MHz

• Scan Angle: 90° FOV

S31

Abdomen, Cardiology, Pediatric Transducer

• Array Type: Phased

• Frequency Range: 9 – 2 MHz

• Scan Angle: 90° FOV

S42

Neonatal Transducer

• Array Type: Phased

• Frequency Range: 14 – 3 MHz

• Scan Angle: 100° FOV

S3ESEL

Adult TEE

• Frequency Range: 8 – 2 MHz

• Scan Angle: 100° FOV

• Diameter: 15.5mm

L441

Vascular Transducer

• Array Type: Linear

• Frequency Range: 12 – 2 MHz

• Scan Width: 38 mm Width

L64

Breast, Small Parts, Thyroid Transducer

• Array Type: Linear

• Frequency Range: 18 – 5 MHz

• Scan Width: 38 mm Width

L34

Vascular Transducer

• Array Type: Linear

• Frequency Range: 7 – 3 MHz

• Scan Width: 38 mm Width

L55

Breast, Small Parts, Thyroid Transducer

• Array Type: Linear

• Frequency Range: 13 – 5 MHz

• Scan Width: 50 mm Width

L53K

Hockey-Stick Transducer

• Array Type: Linear

• Frequency Range: 15 – 3 MHz

• Scan Width: 25 mm

C252

Single Crystal Abdomen Transducer

• Array Type: Convex

• Frequency Range: 6 – 1 MHz

• Scan Width: 50 mm Radius

• Scan Angle: 70° FOV

C35

Abdomen Transducer

• Array Type: Convex

• Frequency Range: 8 – 2 MHz

• Scan Width: 50 mm Radius

• Scan Angle: 70° FOV

C421

Abdomen Transducer

• Array Type: Convex

• Frequency Range: 12 – 3 MHz

• Scan Width: 21 mm Radius

• Scan Angle: 85° FOV

C23

Abdomen Transducer

• Array Type: Convex

• Frequency Range: 8 – 2 MHz

• Scan Width: 50 mm Radius

• Scan Angle: 70° FOV

VC35

3D/4D Abdomen, Obstetrics Transducer

• Array Type: Convex

• Frequency Range: 8 – 2 MHz

• Scan Width: 46 mm Radius

• Scan Angle: 72° FOV

C41V1

Transvaginal Transducer

• Array Type: Convex

• Frequency Range: 10 – 2 MHz

• Scan Width: 10 mm Radius

• Scan Angle: 200° FOV

VC41V

3D/4D Transvaginal Transducer

• Array Type: Convex

• Frequency Range: 8 – 2 MHz

• Scan Width: 10 mm Radius

• Scan Angle: 145° FOV

C41V

Transrectal Biopsy & Guidance Transducer

• Array Type: Convex

• Frequency Range: 8 – 4 MHz

• Scan Width: 10 mm Radius

• Scan Angle: 200° FOV

System Features:

• Optimized Workflow Efficiency: The intuitive user interface is built to minimize repetitive steps and reduce keystrokes. This allows for faster examinations and quicker patient turnover without compromising diagnostic confidence.
• Superior Portability: Featuring a compact footprint, the system moves effortlessly between exam rooms. It navigates tight spaces with ease, making it an ideal choice for facilities where floor space is at a premium.
• Intuitive Operation: Designed for simplicity, the controls allow users to navigate settings instinctively. This streamlined usability reduces the learning curve for staff and enables immediate, effective integration into daily practice.
• Reliable Performance Under Pressure: Engineered specifically for the increasing workloads of busy cardiology offices, the system maintains high performance levels throughout demanding schedules, supporting consistent patient throughput.

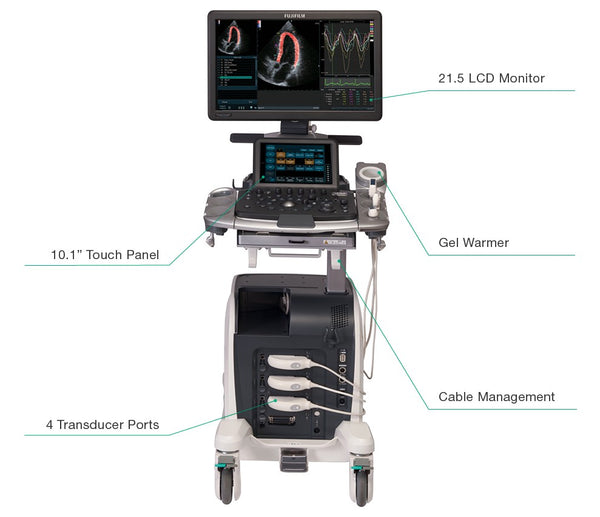

Ergonomics

Swiveling, height-adjustable control panel drops to 40” from the floor to facilitate lower extremity exams. Monitor mounted on a separately articulating arm for wide range of motion.

Protocol Assistant

Provides customizable automation to assist users by performing routine steps such as annotation and mode changes.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and automated image optimization, all with the touch of just a few buttons.

LCD Monitor

With a high contrast ratio and wide viewing angle, the 21.5-inch LCD monitor gives a rich representation of the display image.

Programmable Presets

Fully customizable presets for each user.

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.

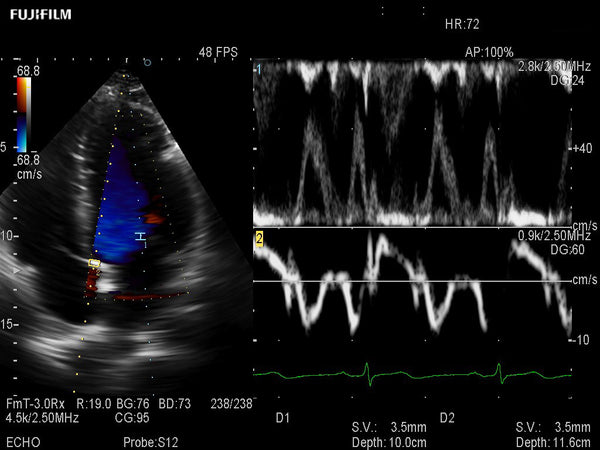

Clinical Images Color Doppler:
