Product Details
FEATURES & SPECIFICATIONS
- Fixed 40" SID
- Toshiba x-ray tube 140 HU 1-2mm focal spot
- kVP range: 40-150kV
- Single Phase 208-230VAC
- Minimum 30 amp service
- High frequency 32kW capacitor assisted 400mA generator
- 15" Touch Screen Operator Console

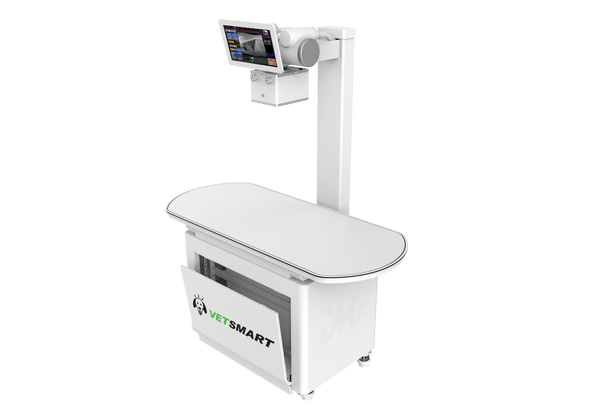

- Exclusive table base/table top designs
- 40" Base w/ 64" standard table top
- 40" Base w/ 48" & 56" table top options
- Oval top w/ urine track
- Unique Push and Open pull out tray to access DR detector
- Exclusive Push and Open Front panel latch mechanism for easy generator access
SMART X-Ray Collimator
Never have to measure the patient again
- Patented ATD (Auto Thickness Detection) technology
- Open APR integration: control kV, mA, and mS
- Exclusively control generator dosage (embedded AI/lot) by detecting body part for ideal exposure
SMART X-Ray Generator
- Low input amperage
- SMART APR
- Remote real-time monitoring, calibration and maintenance features (optional)
- Exclusive self-diagnostic tool based on lot and machine learning
- To reduce the need for onsite service technicians
Panel Options
V-FP Tethered Panel (Flatpanel, Cesium)
The versatile Flat Panel DR system offers images within seconds of exposure and fits easily into smaller x-ray rooms. The 17x17 inch panel produces high quality images and is configurable on multiple chiropractic stands. FP offers true flatpanel technology.
Momentum Wireless Panel (Cesium Flatpanel)
#1 Composite User Satisfaction Score of the MD-Buyline Customer Satisfaction Survey, the 14x17 wireless Flat Panel detector is lightweight and easy to maneuver, and is a true cassette sized hospital-grade 16-bit DR Panel with a Cesium scintillator providing the highest image quality possible.
Acquisition Interface
Superior Image Quality
- Sharper images, optimized clarity
- Configured for grid suppression
- Quick view selection
- Customizable image sharpness level
- Auto Contrast upon processing
- Image auto-shutter/crop
- Images auto-save during acquisition to Server for immediate access in exam rooms
Opal-VET Software
Multi-functional Studylist (see above)
- Burn/Import CDs
- Compare images (post/pre op)
- Custom search/query
- Customize user privileges
Viewer (see left)
- User friendly, DICOM compliant, DPM Tools ††
- 5 additional viewing licenses included
- WORLDWIDE access: view from anywhere!*
VHS (Vertebral Heart Score tool)
Vertebral Heart Size (VHS) is a number that normalizes (indexes) heart size to body size using mid-thoracic vertebrae as units of measure (see left). It has become the standard indicator of radiographic heart size in dogs, cats, and several other species.
