20/20 CFPT 17x48 Full Spine Chiropractic DR Panel

20/20 CFPT 17x48 Full Spine CHIROPRACTIC Direct Digital Imaging System Revolutionary 17x48 Tethered TFT Cesium Universal DR Flat Panel "Point, Click & View" Process Single Exposure Technology 16 Bit High Quality Image Transfer Interface 3.6 lp/mmAdvanced   Image Processing - Artifact Free &...
Need a quote? Get an instant quote delivered to your email!
Please enter your name.
Please valid email address.
Please company name.
Please enter valid phone number.
We value your privacy and will not sell your information to anyone.

Product Details

20/20 CFPT 17x48 Full Spine CHIROPRACTIC Direct Digital Imaging System

Revolutionary 17x48 Tethered TFT Cesium
Universal DR Flat Panel
"Point, Click & View" Process Single Exposure Technology
16 Bit High Quality Image Transfer Interface
3.6 lp/mmAdvanced
Image Processing - Artifact Free & Consistent High Image Quality

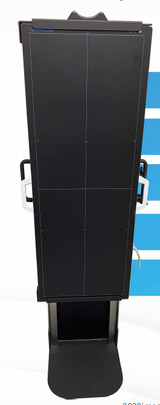

Universal DR 17x48 Wall Mounted Trans-former Holder
The Wall Mounted Trans-Former™ full-spine grid cabinet engineered specifically for unique full-spine applications. The Trans-Former full-spine grid cabinet allows for easy vertical travel. Rotating Pivot Clutch allows for 90 degree rotation.
~ 25" Vertical travel
~ Rotating Pivot Clutch allows for 90 degree rotation.
~ Removable grid
~ Sturdy construction
Universal DR 17x48 Removable Grid Encasement with 8:1/103/Parallel Grid

Lenovo P360 Ultra SFF
ULTRA Acquire Software WorkstationAutomatic setting of acquisition parameters according to body part and system specific programmable APR's (Anatomically Programmed Radiography)Exam Foldering
Windows 10 IoT Enterprise 2021 LTSC
Intel Core i5-12500 CPU with Integrated Intel Graphics
16GB DDR5 4000MHz RAM
Dual Gigabit Ethernet LAN
2 TB SSD M.2 NVMe 2280 PCIe (Gen RAID 1 Mirror (2X NVMe)
Small Form Factor Tower Case
230W External A/C Adapter
Lenovo Wired Keyboard & Mouse incl
External USB DVD-RW Re-Writable D
USB 3.0 Interface
Intel AC-Wireless & Bluetooth
Battery Backup: 600 VA UPS

24" DELL Touch Screen 1080p Monitor

Lenovo P360 Ultra SFF - OpalRad MiniPacs Workstation
Opal-Rad DICOM Image Viewer Software Package
Allows access to patient images from 5 CC WEB in- office/ web locations

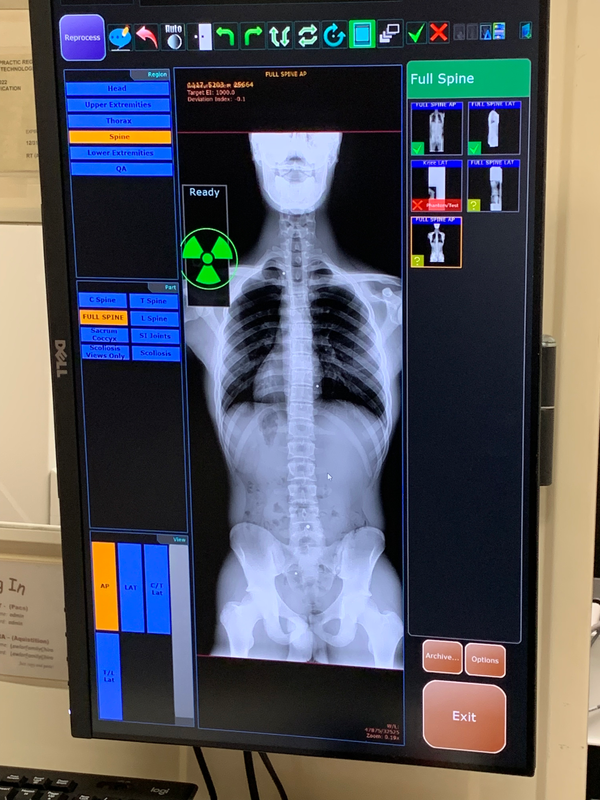

Chiropractic Analysis and Diagnostic Software
Window Level, Magnify, Zoom, Rotate, Tools include Cobb Angle and Measurements: Georges's Line, Adv. Orthogonal, & Gonstead
Windows 10 IoT Enterprise 2021 LTSC
Intel Core i5-12500 CPU with Integrated Intel Graphics
16GB DDR5 4000MHz RAM
Dual Gigabit Ethernet LAN
2 TB SSD M.2 NVMe 2280 PCIe (Gen4)
RAID 1 Mirror (2X NVMe)
Small Form Factor Tower Case
230W External A/C Adapter
Lenovo Wired Keyboard & Mouse included
External USB DVD-RW Re-Writable Drive
USB 3.0 Interface
Intel AC-Wireless & Bluetooth
Battery Backup: 600 VA UPS\

24" DELL Touch Screen 1080p Monitor

Opal Modality Worklist (MWL) Query
Access patient demographics from existing 3rd party worklist

Warranty:
CFPT 17x48 Full Spine Detector and Software
60 Month Manufacturer Warranty
Customer supplied internet access is required prior to system install for remote diagnostics. Network is the responsibility of the customer.

Lenovo P360 Ultra SFF Computer Components (PC, monitors, related)
36 Months Specific to Manufacturers Warranties (provided by Lenovo)
Peripherals - 12 Months Parts ie. monitor, external hard drives, keyboard/mouse, cables

DIGITAL IMAGING SYSTEM SUPPORT
60 Months Remote Support
Includes all software revisions
Customer supplied internet access is required prior to system install for remote diagnostics. Network is the responsibility of the customer.
