Product Details

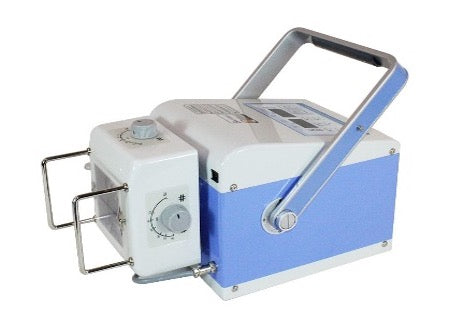

Poskom High-Frequency Wireless X-Ray Generator

  • Includes hand switch and carrying case
  • Max Output (KW) 1.6
  • Kv Range per 1KV Step 40-100
  • mA Range/No. of steps 15,20
  • mAs Range/No of steps 0.4-50/32
  • "Optional dual collimator with Laser Pointer"
  • Ultra Lightweight (23lbs) and compact size
  • Charging time 3.5hrs
  • No. of APR 15
  • Digital readout reverse switch
  • Tube Voltage Range: 40-100Kv

Xray Tube:

Focal Spot: 1.2 mmx1.2 mm

Target Angle: 16 Degrees

Anode Heat Storage:  20 kHU

Roadmaster Cart

  • Single action duel wheel brake system (locks both wheels with on action).
  • Fold under front leg allows X-ray tube to park with collimator down or facing outward
  • Direct operation of gas spring without using a remote cable and lever
  • 3 inch support rail wheels for easy vehicle loading
  • Single solid axle with two 14 inch heavy duty wheels
  • Narrow wheel base to clear 24 inch doorways and tight spaces
  • Fold down laptop holder and Digital Plate holder
  • 4 Way motion tube arm; Up/Down/Left/Right
  • Locking ball arm pivot for POSKOM AirRay tube heads
  • Very Lightweight portable X-ray system for home health
  • Quick disconnect of tube head from cart arm

1417 Universal Glassless DR Flat Panel

Revolutionary WIRELESS 35x43 cm (14x17 in.) Cassette Size CESIUM Detector

16 Bit High Quality Image Transfer Interface

Advanced Image Processing - Artifact Free & consistent high image quality

6.6 lb.Lightweight Design for Ease of Handling

Two (2) Rechargeable Batteries with Charger

Acquisition Workflow Management

  • Streamline based workflow optimal for maximum throughput
  • Automatic setting of acquisition parameters according to body part and system specific programmable APRs (Anatomically Programmed Radiography)
  • One console operation - generator parameters setting by the workstation as part of APR (optional)
  • Patient data entry, manually or automatically from the DICOM worklist (MWL HL7 May be Required Urgent patient registration
  • Preview image typically within 4-5 seconds after exposure Exam specific image processing for optimized image quality
  • Automatic backup of operator accepted images.

"Lenovo ThinkPad L14 Gen4 or current model PC "

Intel 13th gen i5-1345U CPU, 16 GBDDR4 RAM 1 TB M.2 SSD NVMe Gen4 for OS and Software 14" 1080p, IPS, Touchscreen, 300 nits, 60Hz Intel Wi-Fi 6E & Bluetooth 5.1 Windows 10 Professional

Opal-RAD Acquisition Configuration for Mobile
