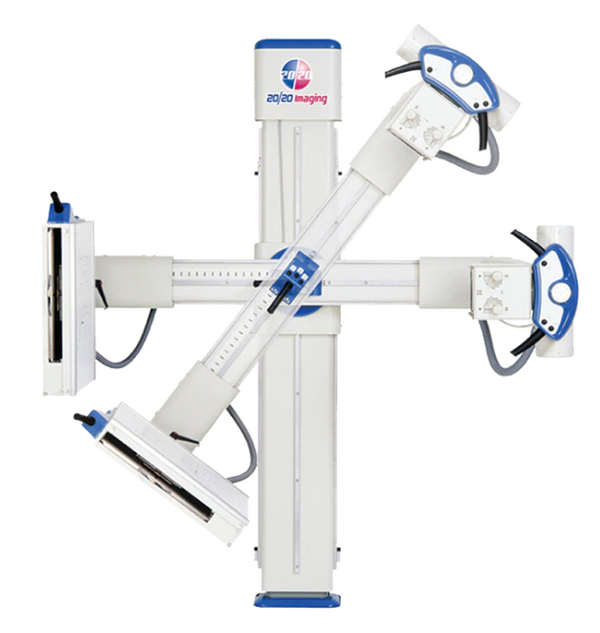

20/20 Compact DR system:
is an integrated system for all conventional radiographic applications in combination with a High Frequency Generator, making the Straight Arm the most advanced system available.
The system has been designed focusing on flexibility and user friendliness. It can be further configured depending on your exact clinical requirements.
Configuration:
- Floor Mount 8' 6"
- H.T. cables
- Manual Collimator
- Cesium Detector Technology - 17" x 17" Active Imaging Area
- X-Ray Generator SHF415 40kw, 150kVp, Single phase 220/240 VAC
- X-Ray Tube E7884X 150Kvp 300,000 HU, 0.6 - 1.2 focal spot
Mechanical Swivel Arm with Flat Panel Cabinet
- Floor-to-wall mounted support
- Electromagnetic brakes for all movements
Mechanical Movements:
- Motorized variable SID distance, adjustable between 39.4 to 70.9".
- Swivel arm range of rotation: 135°, with detents on 30°, 0°, 90°, 120°.
- Motorized Swivel arm vertical movement: 39".
- Minimum floor to detector center distance: 27.6'
- Detector Angulations: +45/-45°
- Electromagnetic brakes for all movements
- Adaptation for flat panel cabinet.
- Dimensions (H x W x D): 8' 9" x 7'4" x 4'6".
SHF525 Single Phase 50kW Generator Program
- High Frequency 25KHz, 1 tube operation
- Single phase 208/240 VAC (specify prior to order)
- Output power:
640 mA @ 78kVp
500 mA @ 100kVp
400 mA @ 125 kVp
320 mA @ 150 kVp
- Automatic line compensation +/-10%
- Microprocessor controlled with auto diagnostic and error code indication
for easy maintenance
- X-ray tube overload protection
- X-ray tube H.U. available indication and continuous monitoring for x-ray
tube protection
- Control of x-ray tube number of exposures
- Hand switch for preparation and exposure control
- Light and sound indication for x-ray exposure
- kVp Radiographic range, from 40 to 125 kVp in 1 kVp step
- mA Radiographic range from 10 to 640mA in 19 step, Renard scale 10,
12.5, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 160, 200, 250, 320, 400,
500, 640 mA
- mAs range from 0.1 to 500 mAs in 38 steps, Renard scale
- Exposure time range from 0.001 to 10 seconds
X-Ray Tube, Toshiba Model E7884X
- Maximum Tension, 150 kVp
- Focus sizes:
-- Small focus 0.6 mm
-- Large focus 1.2 mm
- Maximum power:
-- Small focus 20.0 KW
-- Large focus 50.0 KW
- Maximum Current
-- Small focus 290 mA
-- Large focus 800 mA
- Anode degree target angle 12 degrees
- Anode heat capacity 300,000 HU
- Anode rotation 2,700/3,200 RPM
- Anode composition Rhenium, Tungsten and face Molybdenum
- Anode diameter 2.9"
- Filtration equivalent 0.7" AL
Manual Collimator
- Manual collimator with 6 pair of blades
- Accessory rails (cones, filters, etc)
- Field light lamp (light of the lamp 160 lux)
- Light indicator for alignment with the bucky
- Lamp timing
- Retractable measuring tape
High Tension Cables (2) 9 meter Ultra Flexible High Tension Cables
Low Speed Starter (3000 RPM) for one X-Ray tube: Starter for anode rotation of one x-ray tube of equal or different impedance.
- Rotation control of the anode at low speed: 3.000 R.P.M., (60Hz) in
function of the selected power
- Rotation control of the anode at low speed: 10.000 R.P.M., (180z) in
function of the selected power
- Anode Rotation Brake control
- Time delay of the brake in function of the sequence of exposure selected
PRODUCT WARRANTIES
20/20 CSA X-Ray Equipment
12 Months Parts (Mechanical)
CFPT Detector
60 Month Manufacturer Warranty
DELL Precision T3450 XE Computer Components (PC, monitors, related)
36 Months Specific to Manufacturers Warranties
Peripherals
12 Months Parts
ie. monitor, external hard drives, keyboard/mouse, cables
SYSTEM SUPPORT
Dealer Remote Support:
60 Months Remote Support
Includes all software revisions
Customer supplied internet access is required prior to system install for remote diagnostics. Network is the responsibility of the customer.
