TXR X-ray System - ML1 - Elevating Table w/ Floor Mount Rotate Tube Stand and Wall Stand

Regular price $48,550.00 Sale

What more options?
Lease/Finance $804.38/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

ML1 - Elevating Table with Floor Mount Rotate Tube Stand with Digital Readout and Wall Stand

HF generators supplied with APR, table mount and hand switch.

See options for 3-phase upgrades on SHF410 and SHF510 generators

  • 32kW, 400mA, 125kVp, 1-phase, 220/240VAC, E7239 140kHU Tube
  • 40kW, 500mA, 125kVp, 1-phase, 220/240VAC, E7242 200kHU Tube
  • 50kW, 640mA, 125kVp, 1-phase, 220/240VAC, E7884 300kHU Tube
  • 64kW, 640mA, 150kVp, 3-phase, 380/480VAC, HSS, E7252 300kHU Tube
  • 80kW, 800mA, 150kVp, 3-phase, 380/480VAC, HSS, E7254 400kHU Tube

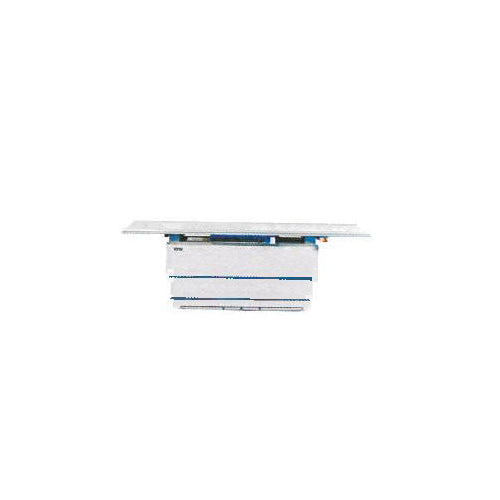

Elevating, Four Way Float Top Table – 750 lb. Patient Load

  • 86.5” x 31.5” float table top
  • 43.3” longitudinal and 9.5” lateral table top travel
  • Collision protection
  • Super Speed Bucky
  • Heavy duty manual cassette tray
  • 103 line, 10:1 ratio, 34-44” focal range grid


Floor Mount Rotate Tube Stand with Digital Readout

  • Longitudinal tube travel 200cm (78.74")
  • Transverse tube travel: 30cm (11.81")
  • Vertical tube travel: 162cm (63.78")
  • Focal spot to floor, variable from 40-202cm (15.75"-79.53")
  • X-Ray Tube Rotation ±150º
  • Tube Stand Column Rotation ±180
  • Electromagnetic brakes
  • Tube arm console controls: longitudinal, transverse, vertical and rotational lock control buttons
  • Tube arm console displays: SID and tube angle around horizontal axis
  • 108.5" floor track, provides 78.74" travel


Wall Stand with 17 x 17” Grid Cabinet

  • Floor to Wall Mount, Counterbalanced Column
  • Minimum ceiling height: 86” from floor
  • Vertical Travel: 9-3/4” to 72-3/4”
  • Grid Cabinet with Heavy Duty Tray and 10:1, 103 line grid
  • Electric locks (24 VDC 2 Amp required) power supply included
  • Operates on 120 VAC


X-Ray Tube - 140,000 heat unit, 1.0-2.0mm focal spots, 90° horn angle


    Collimator - Certified Manual Collimator with laser light, LED, 125kVP


      Cables - Pair, 25’ long

      *This product has been permanently discontinued.

      Replacement products available.
