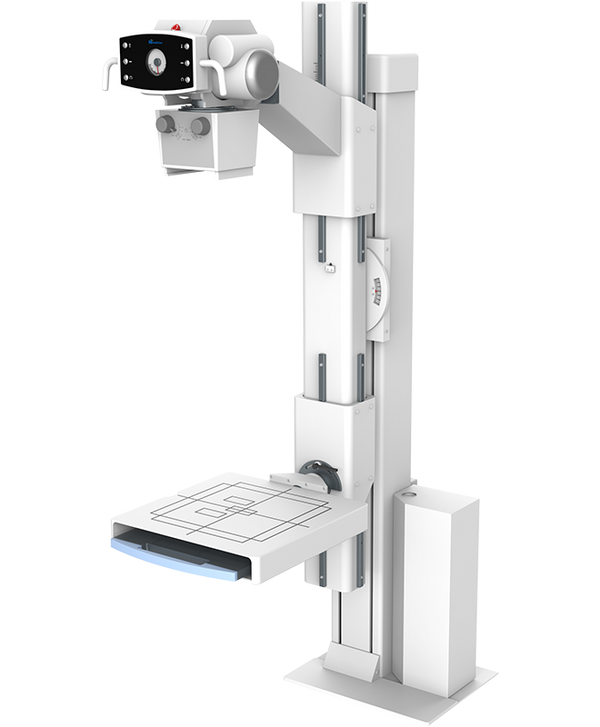

MasteRad SA 1000 Straight Arm

Introducing the MasteRad SA 1000, a revolutionary addition to the MasteRad™ series, crafted to redefine imaging solutions with cutting-edge technology and user convenience at its core. This fully motorized straight arm system is expertly designed for spaces with limited room, ensuring maximum efficiency without compromising on performance.

Key Features:

• Compact Design: Ideal for tight spaces, fitting comfortably in rooms as small as 10x10 feet with an 8' ceiling.
• Versatile Imaging Solutions: Perfect for a variety of settings from urgent care and doctor's offices to orthopedic practices and chiropractors, offering a comprehensive range of radiographic exams.
• User-Friendly Operation: Effortlessly capture any view with a simple push of a button using its intuitive touch screen interface.
• Advanced System Movements:
• Motorized SID adjustable from 39.4" to 70.8".
• Vertical movement up to 50.7".
• Arm rotation angle ranging from +120° to -30°.
• Tube rotation of +/- 90° and bucky tilting manually from +/- 45°.
• Smart anti-collision sensor for safety.
• Single button control for quick positioning, complemented by tube head push-button controls.
• High-Performance Components:
• Equipped with a standard CPI 32 kW high-frequency X-ray generator.
• Toshiba X-ray tube capable of operating voltage ranges from 40-125kV.
• Collimator with manual LED over 160 Lux with a 30-second timer.
• Optional Mobile Table: Durable with a working load capacity of 485 lbs and equipped with locking wheel casters.

Digital DR Package:

• Features a 17” x 17” tethered DR panel with Voyance Software and VPACS for seamless integration.
• Includes a Dell computer with a 24” display for enhanced visualization and analysis.

The MasteRad SA 1000 Straight Arm is your go-to solution for an optimized, efficient, and cost-effective radiographic system, engineered to meet the diverse needs of modern medical settings. Experience the ultimate in imaging excellence—choose MasteRad.
