GP-6 4 Way Float Top Table with Floor-to-Wall Non-Rotate Tube Stand

Regular price $30,000.00 Sale

Product Details

GP-6 4 Way Float Top Table with Floor-to-Wall Non-Rotate Tube Stand

MULTI-FWFTT-G

Four-Way Float Top Table, Fixed Height, Multirad

  • 86.6" x 32.4" float top table (2200mm x 825mm)
  • Table top supports patients up to 661 lbs (300 kgs)
  • Longitudinal table top travel 35" (+/-17.5") (900mm)
  • Transverse table top travel 9" (+/-4.5") {230mm)
  • Table top to Film Distance: 4" (102mm)
  • Bucky travel: 20.3" (581mm)
  • Table top to floor distance 30.3" (769mm)
  • Electromagnetic brakes
  • Heavy duty grid cabinet with heavy duty manual cassette tray
  • 103 line, 10:1 ratio, 34-44" focal range grid

    13-RA-23/S105-8

    Rotate Floor-to-Wall Tube Stand with Transverse Travel

    • +l-5" Transverse travel
    • 360° Column Rotation, mechanical detent
    • Vertical travel 13.5"-76.8"
    • 39.2'' wall to focal spot at detent position
    • Platform tube mount; Angulation dial
    • Magnetic locks for longitudinal, transverse, vertical & tube rotation
    • Fits in ceiling heights of 93"-120"
    • 75.7" Longitudinal Travel with 8' floor track
    • UL Classified, operates from 24 VDC

    13-BF7-GC/S109

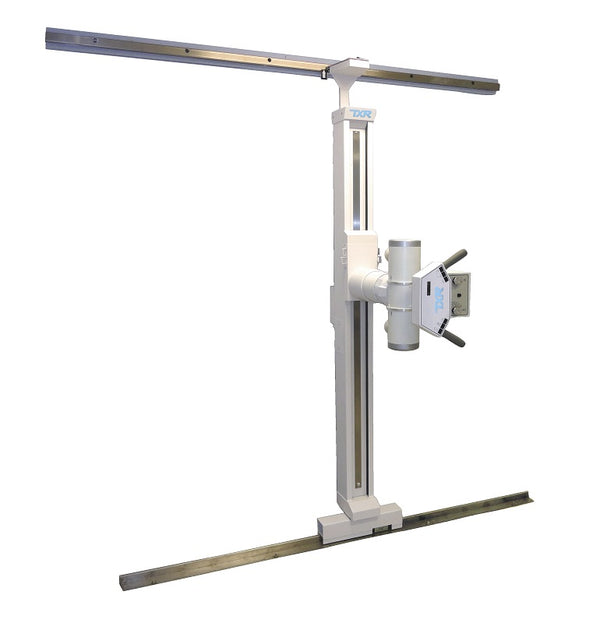

    Floor-to-Wall Non-Rotate Tube Stand

    • Vertical travel 11.75" - 76.75"
    • 23" focal spot to front of column
    • Platform tube mount, angulation dial and operator handles
    • Manual lock for tube angulation
    • Electric lock for longitudinal and vertical travel
    • Fits in ceiling heights of 88"-121•
    • 75.2" Longitudinal travel with 8' floor track
    • UL Classified, operates from 24 VDC

    13-BF7-GC/S109

    Wall Stand with 17 x 17" Grid Cabinet

    • Floor-to-Wall Mount, Counterbalanced Column
    • Minimum ceiling height: 86" from floor
    • Vertical Travel: 9-3/4" to 72-3/4"
    • Grid Cabinet with Heavy Duty Tray and 10:1, 103 fine grid
    • Electric locks (24 voe 2 Amp required) power supply included
    • Operates on 120 VAC

        E7239FX

        X-Ray Tube - 140,000 heat unit, 1.0-2.0mm focal spots, 90° horn angle

        CML-125-0001-C

        Collimator - Certified Manual Collimator with laser light, LED, 125kVP

        10539-20

        Cables - pair, 20' long
