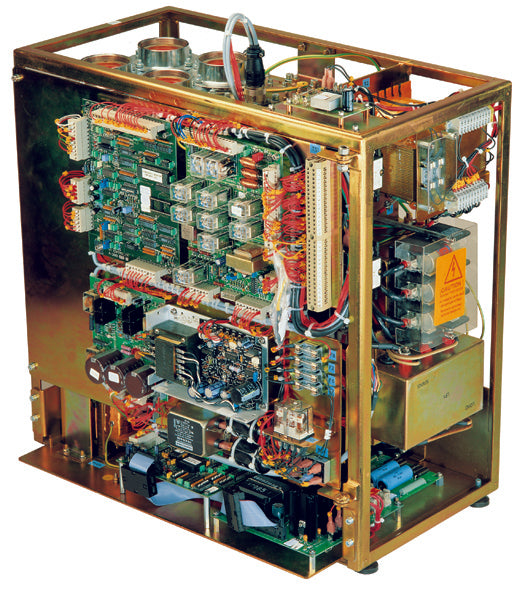

Generators - High Frequency 380V - 480V – MavenImaging


Generators - High Frequency 380V - 480V

Regular price $26,400.00 Sale

Product Details

Generators - High Frequency 380V - 480V

SHF 635AP (380V)
or
SHF 645AP (480V)

64kW, 640 mA, 500 mAs High Frequency Generator
  • 640 mA., 150 kVp (640 mA@ 100 kVp)
  • Nineteen mA stations, 10, 12.5, 16, 20, 25, 32, 40, 50,
  • 64, 80,100,125,160,200,250,320,400,500,640
  • 0.001 to 10 second time range
  • 0.1 to 500 mAs
  • kVp selection, 40 to 125 kVp in 1 kV increments
  • Digital displays
  • Automatic line compensation
  • APR, Anatomical Programming
  • High Speed Starter
  • Table mount
  • Exposure hand switch
  • UL/CE/FDA Listed
  • For Operation on 3 Phase 380/480VAC

SHF 635AP-TC (380V)
or
SHF 645AP-TC (480V)

E7252FX 300kHU, 0.6-1.2mm fs high speed tube with go0 horns
and
10538-15 Cables, pair- 15'long, federal terminations

SHF 835AP (380V)
or
SHF 845AP (480V)

80kW, 800 mA, 500 mAs High Frequency Generator

  • 800 mA., 150 kVp (800 mA@ 100 kVp)
  • Twenty mA stations, 10, 12.5, 16, 20, 25, 32, 40, 50,
  • 64,80, 100,125,160,200,250,320,400,500,640,800
  • 0.001 to 10 second time range
  • 0.1 to 500 mAs
  • kVp selection, 40 to 125 kVp in 1 kV increments
  • Digital displays
  • Automatic line compensation
  • APR, Anatomical Programming
  • High Speed Starter
  • Table mount
  • Exposure hand switch
  • UL/CE/FDA Listed
  • For Operation on 3 Phase 380/480VAC

SHF 835AP-TC (380V)
or
SHF 845AP-TC (480V)

80kW, 800 mA, High Frequency Generator with:

E7254FX 400kHU, 0.6-1.2mm fs high speed tube with go0 horn

and

10538-15 Cables, pair-15' long, federal terminations

              *This product has been permanently discontinued.

              Replacement products available.
