Product Details
AMRAD® Medical 800DR High-Frequency Generator
- Up to 400 kHz, 80 kW High Frequency (HF) generator
- Anatomical Programming
- Twenty-one (21) mA stations: 10-1000
- kVp range: 40-150 in 1 kV steps
- mAs range: 0.1-1000 mAs
- Pedestal Mount and Handswitch
- Operates from 3-phase, 400-480V electric service
- Dual Speed Starter INCLUDED
AMRAD® Medical 650DR High-Frequency Generator
- Up to 400 kHz, 65 kW High Frequency (HF) generator
- Anatomical Programming
- Twenty (20) mA stations: 10-800
- kVp range: 40-150 in 1 kV steps
- MAs range: 0.1-800 mAs
- Pedestal Mount and Handswitch
- Operates from 3-phase, 208-230V (External transformer required for 208-230V,
- additional charges apply. DSS is not available for incoming power configuration) or 400-480V electric service
- Dual Speed Starter INCLUDED
AMRAD® Medical 500DR High-Frequency Generator
- Up to 400 kHz, 50 kW High Frequency (HF) generator
- Anatomical Programming
- Nineteen (19) mA stations: 10-630
- kVp range: 40-150 in 1 kV steps
- MAs range: 0.1-630 mAs
- Pedestal Mount and Handswitch
- Operates from 3-phase, 208-230V, or 400-480V electric service
AMRAD® Medical 400DR High-Frequency Generator
- Up to 400 kHz, 40 kW High Frequency (HF) generator
- Anatomical Programming
- kVp range: 40-125
- MA stations: 10-500
- MAs range: 0.1-500 mA
- Pedestal Mount and Handswitch
- Operates from 1-phase, 208-230V or 3-phase, 208-230 or 400-480VAC electric service

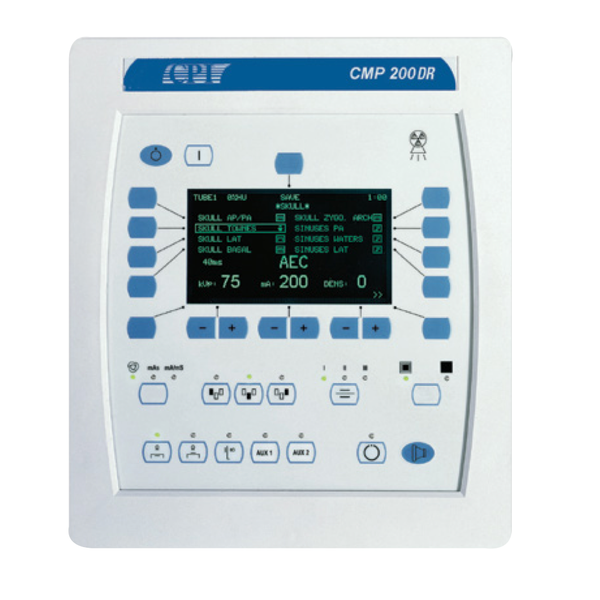

Specifications of the AMRAD® Medical DR Series
- Technique selections:
- 1) kVp / mAs
- 2) kVp / mA / Time
- 3) Anatomical Programming / Patient size
- 4) Anatomical Programming / AEC (optional)
- 5) kVp with AEC (optional)
- LCD display of all technique factors ( mA, kVp, mAs)
- LCD display of Bucky, film speed, and focal spots
- Tracks 3 film/screen combinations in AEC mode
- Self-calibrating generator
- X-ray tube overload protection
- Self-diagnostics
- 50 ft. console interconnect cable
- TÜV SÜD, CE
Footnotes:
- A Generators purchased as a loose component has a 1-year Parts Warranty 04/22 49 of 82
