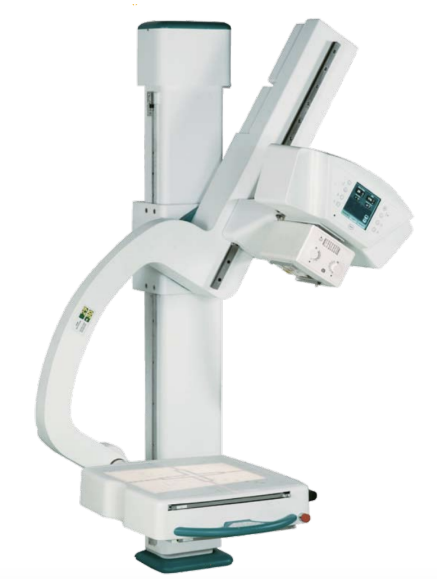

AMRAD® Medical AAU Elite DR

Regular price $194,719.00 Sale

What more options?
Lease/Finance $2689.6/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

  • Universal Radiographic system AAU Elite, fully motorized, auto-positioning, and touch screen (240V)
  • Adapter for fixed DR panel
  • Frame for removable grids
  • Grid 215 Lines, 10:1, focused at 1.5 m / 60 in.

Ralco 225:

  • Certified 150 kVp manual collimator with swivel mount
  • LED light field and tape measure
  • Transverse laser alignment to receptor tray

Standard X-Ray Tubes (Specified by kW rating):

  • 0.6-1.5 mm focal spots, 200,000 heat units (40 kW) – 09127
  • 0.6-1.2 mm focal spots, 300,000 heat units, 3 in. anode (50 kW) - 01382
  • 0.6-1.2 mm focal spots, 400,000 heat units, 4 in. anode (65 or 80 kW generator) – 06550


  • Pair of high voltage cables 9 m / 30 ft.
  • Pair of high voltage cables covers 9 m / 30 ft.
  • Adapter for wall mounting – standard, see options for ceiling mount
  • Standard cable set for AAU Elite short 9 m / 30 ft.
  • AMRAD® Medical DR Elite 17X17" VU Detector - Cesium
  • Integrated Workstation and Operators’ Console, ThinkStation P330 – Tiny Windows 10 Pro 64 – 1809, 16GB DDR4 2666MHz SoDIMM Linxus Router (wireless)
  • Automatic Stitching Software
  • License Key for Automated Stitching (Automated equipment positioning for Stitching)
  • Remote Control

Five (5) year parts warranty on the system with 5 years prorated on x-ray tube.
24/7/365 Remote Support on DR Elite, 5 years

$ 2,500 per day, including all expenses. Three days applications are REQUIRED unless otherwise agreed to in writing.

Product Reviews

Shipping & Returns

Shipping - Delivery shall be made at FOB shipping point of origin. Seller's responsibilities for the Equipment purchased pursuant hereto ceases and title and risk of loss passes to Customer upon delivery to the carrier. In the event of loss, damage, injury or destruction after such delivery to the carrier, claims must be made against the carrier and not against Seller. In no event shall any loss, damage, injury or destruction operate in any manner to release Customer from the obligation to make payments required herein. Returns - Unless a product is labeled "all sales final" at the time of purchase, all orders may be returned within 30 days for a refund. In order to return or exchange (under the guidelines described below) all or part of your order, customer must contact us for a Return Merchandise Authorization number (RMA#). Call toll free (800) 949-8015 to obtain RMA # from a Seller's representative. All returned merchandise must be in the original packaging including manuals, accessories, cables, etc. with the authorization (RMA#) clearly printed on the outside of the package. Return requests must be made within 30 days of the receipt date. All returns must be certified to be in good condition by one of our engineers before refund can be accepted. If the product has been damaged, seller will assess the damage and will determine if the product is entitled to a refund. All free items must be returned together with purchased items in order to receive a refund. Any shipping and/or handling charges on the original order cannot be refunded. At our discretion, we may levy a restocking fee of 25% of the cost of items returned. Any vouchers or gift certificates earned by a returned order will be voided, and the voucher amount will be charged to any order to which it was applied. Installation, training or professional services are NON-REFUNDABLE. Seller is responsible for shipping costs or damage on returned items. Units to be returned should be packed carefully. Please be advised that packages sent by normal US Postal Service cannot be tracked to ensure delivery. Since Seller cannot provide credit for a return without confirming its receipt, we recommend that you use a delivery service that can be tracked and or insured.
