AMRAD® Medical OTS Classic Manual System

Regular price $112,672.00 Sale

What more options?
Lease/Finance $1403.16/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

Elevating Radiographic Table:

  • Deluxe Elevating 4-way Float-top Table (23 in. – 34 in.)
  • 650 lb. rated patient load with collision protection
  • +/-5 in. transverse travel, 30 in. longitudinal travel
  • 84 in. x 30 in. tabletop
  • 17 in. Grid Cabinet with electric lock, 18 in. travel
  • Grid: 10:1 ratio, 103 LPI
  • Heavy-duty Deluxe Cassette Tray 06338
  • Table-Top 4-way Lock Release and Elevation Handle

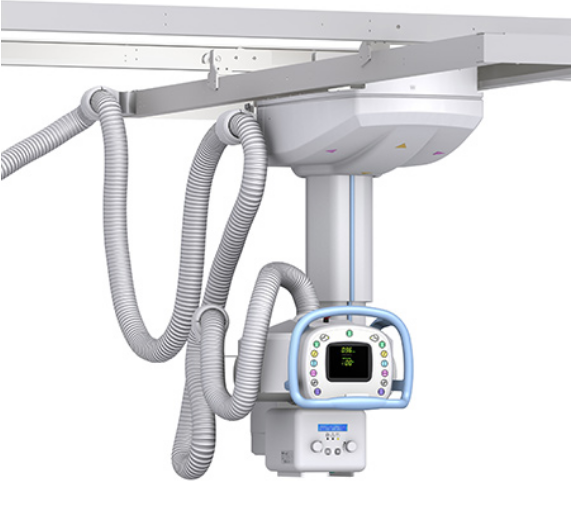

Manual Overhead Tube Support:

  • Ceiling mount tube support system
  • The vertical axis is motor driven for ease of movement
  • 15 feet / 4.6-meter longitudinal rails – longitudinal travel 192 in.
  • 10 feet / 3-meter bridge – transverse travel 95 in.
  • Motorized vertical column – vertical travel 63 in.
  • Tube column rotation - 180º with detents every 45º
  • Tube angulation ±135º with detents every 45º
  • Digital Display of SID and rotation
  • Electromagnetic Locks with safety ON in case of a power outage
  • Fixed trunnion tube mount

Wall stand:

  • Heavy-duty, center-mount or flag-mount wall stand (specify right or left-hand load)
  • Grid Cabinet, 17 in. x 17 in.
  • Grid: 10:1 ratio, 103 LPI
  • Heavy-duty Deluxe Cassette Tray 06338
  • Electric locks
  • PA Grips (2 with center-mount style, 1 with flag-mount style)
  • Remote Collimator Light
  • Overhead Patient Grip

Standard X-Ray Tubes (Specified by kW rating):

  • 0.6-1.5 mm focal spots, 200,000 heat units (40 kW and 42 kW generator) – 09127
  • 0.6-1.2 mm focal spots, 300,000 heat units, 3 in. anode (50 kW and 52 kW generator) - 01382
  • 0.6-1.2 mm focal spots, 400,000 heat units, 4 in. anode (65 or 80 kW generator) – 06550

Cables J995:

  • 65 ft. High Voltage cables, 150 kV

Ralco 225:

  • Certified 150 kVp manual collimator with swivel mount
  • LED light field and tape measure
  • Transverse laser alignment to receptor tray

To See Further Options Click Below:
