Product Details
AMRAD® Medical 523E High-Frequency Generator:
- 20 kHz, 52 kW High Frequency (HF) generator
- Anatomical Programming
- 2-point kV, mAs
- Eight (8) mA stations: 50s, 100s, 200L, 300L, 350L, 400L, 450L, 500L
- MAs range: 0.2-600 mAs
- Operates from 3-phase, 208-250VAC, 380-480V electric service
- Pedestal Mount
- 20 kHz, 42 kW High Frequency (HF) generator
- Anatomical Programming
- 2-point kV, mAs
- Eight (8) mA stations: 50s, 100s, 200L, 300L, 350L, 400L, 450L, 500L
- MAs range: 0.2-600 mAs
- Operates from 3-phase, 208-250V, 380-480V electric service
- Pedestal Mount
- 20 kHz, 42 kW High Frequency (HF) generator
- Anatomical Programming
- 2-point kV, mAs
- Eight (8) mA stations: 50s, 100s, 200L, 300L, 350L, 400L, 450L, 500L
- MAs range: 0.2-600 mAs
- Operates from 1-phase, 208-277V electric service
- Pedestal Mount
- 20 kHz, 30 kW High Frequency (HF) generator
- Anatomical Programming
- 2-point kV, mAs
- Eight (8) ma stations: 50s,100s, 200L, 300L, 350L, 400L, 450L, 500L
- MAs range: 0.2-600 mAs
- Operates from 3-phase, 208-250V, 380-480V electric service
- Pedestal Mount
- 20 kHz, 30 kW High Frequency (HF) generator
- Anatomical Programming
- 2-point kV, mAs
- Eight (8) ma stations: 50s,100s, 200L, 300L, 350L, 400L, 450L, 500L
- MAs range: 0.2-600 mAs
- Operates from 1-phase, 208-277V electric service
- Pedestal Mount

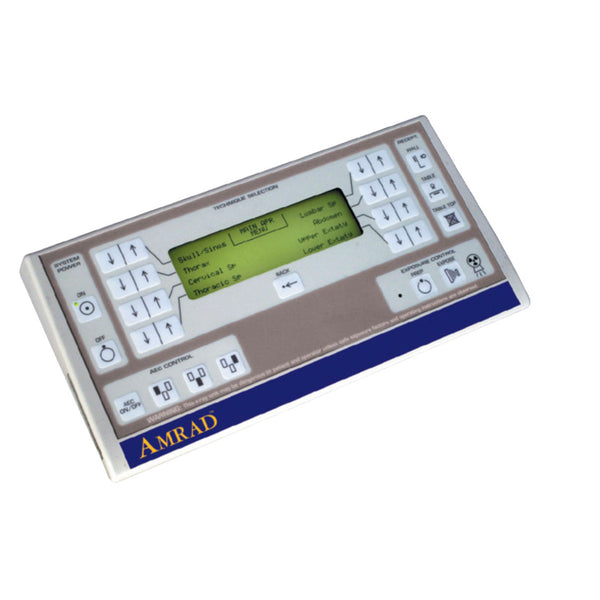

Specifications of the AMRAD® Medical E Series:
- kVp range: 40-125 in 1 kV steps
- Technique selections:
- 1) kVp / mAs
- 2) Anatomical Programming / patient thickness
- 3) Anatomical Programming / AEC (optional)
- 4) kVp with AEC (optional)
- Digital display of kVp, mAs and mA
- X-ray tube overload protection
- Self-diagnostics
- 50 ft. console interconnect cable
- UL classified
Footnotes:
A Generators purchased as a loose component has a 1-year Parts Warranty
