Product Details
Digital X-Ray Package: ChiroImage-3 - Chiropractic system consisting of:

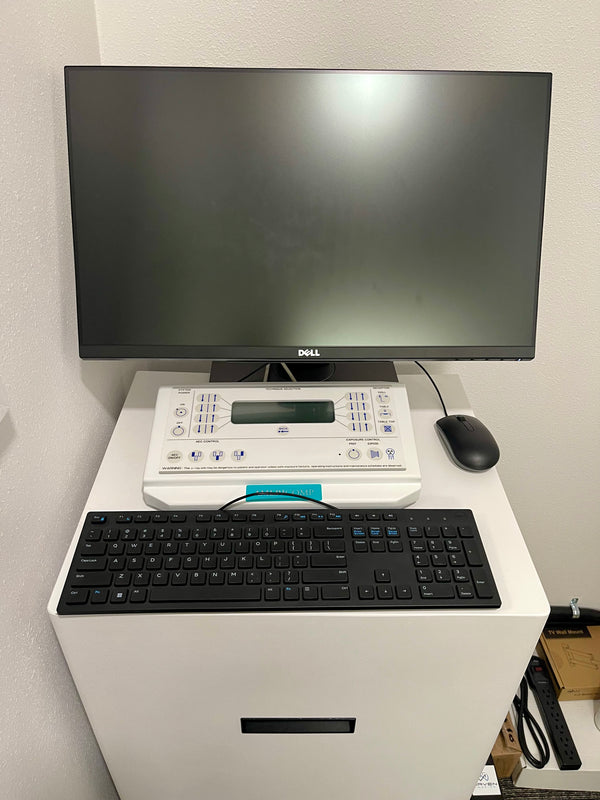

Spectra 30HF High Frequency generator with:
• 30 kW rating
• Technique selection: kVp/mAs & Anatomical Programming ( specify 250 or 400 speed techniques)
• kVp range: 40 – 125, mA range: 50 -300, mAs range: 0.5-400
• 15 ft. console cables, manuals on CD, UL label, 13 ft. line cable. • For operation on 1 phase, 208 VAC, 125 Amp or 1 phase, 240 VAC, 100 Amp electrical service, 08168-001

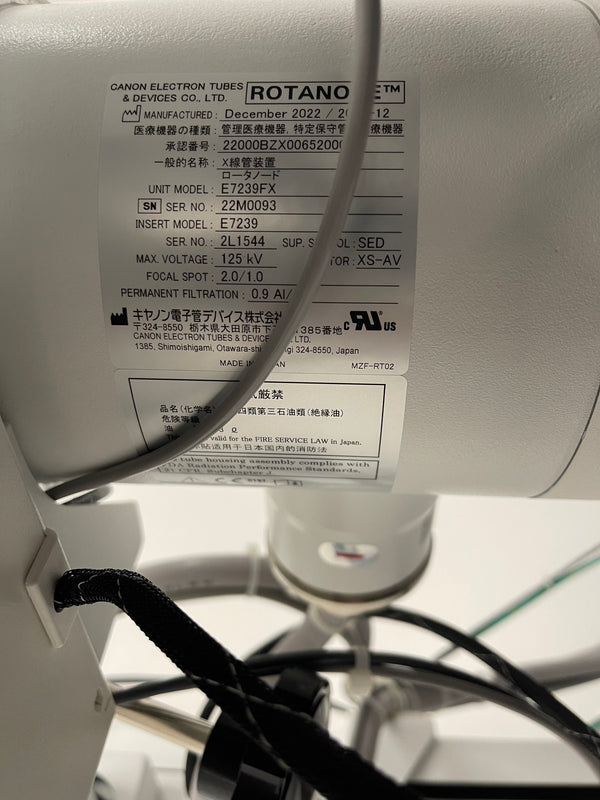

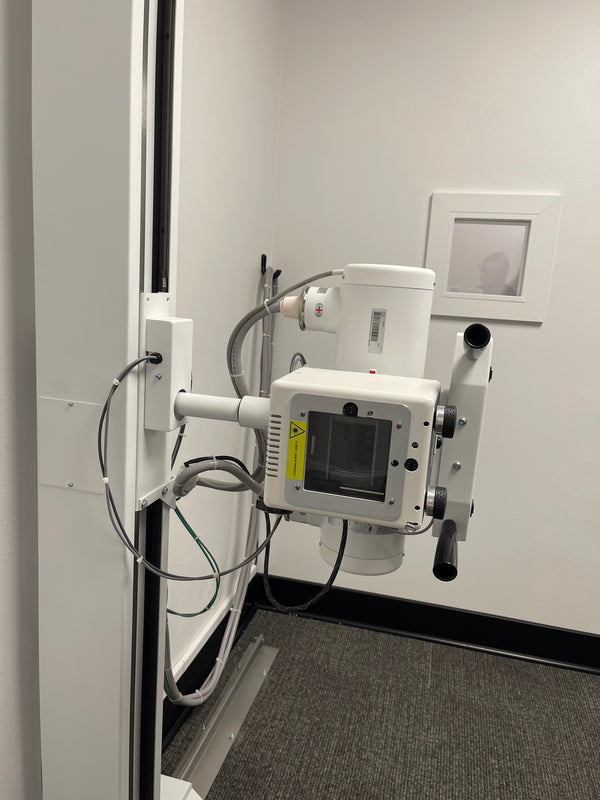

A120 140 KHU X-ray tube, 1.0/2.0 mm F.S. ( specify shoot left or right)
C600-15 15 ft. High Voltage cables

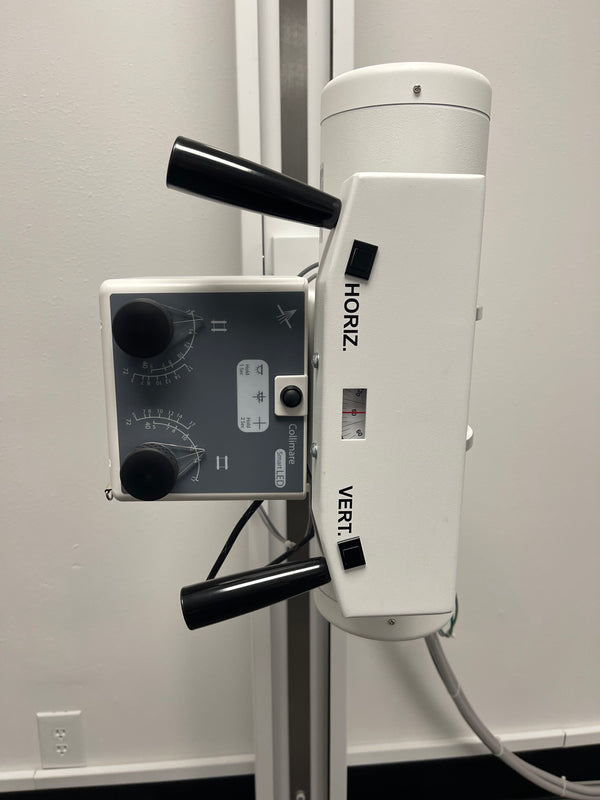

07615 Certified manual collimator, LED, single laser bucky line, swivel

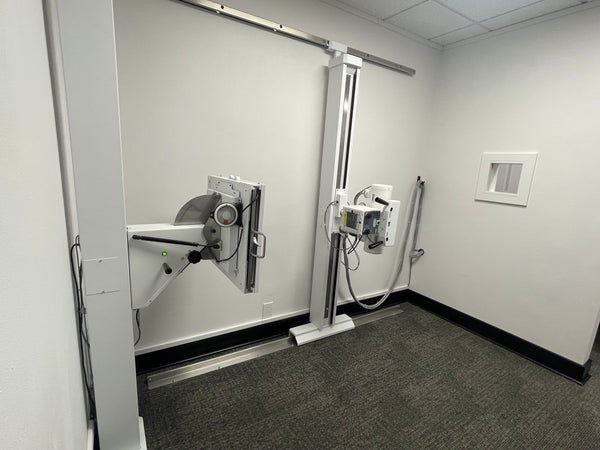

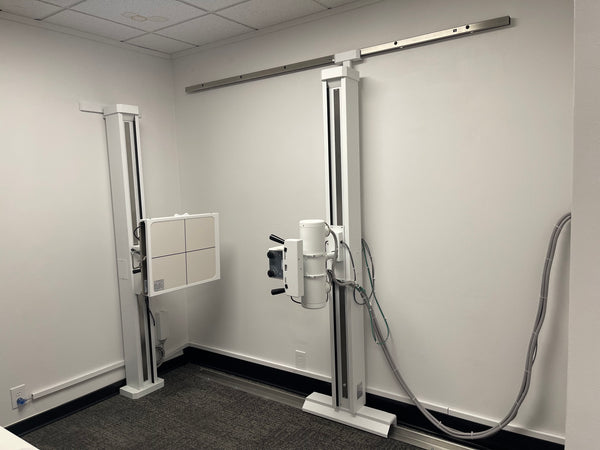

A4570 Basic tubestand ( floor to wall) with:
• 8 ft. rails
• Electric locks for vertical & horizontal tube travel.
• Fixed tubearm ( specify 10”, 14”, 17”, 19” or 23” FS to column front)
• Platform tube mount, Angulation dial with manual lock, operator
handgrips

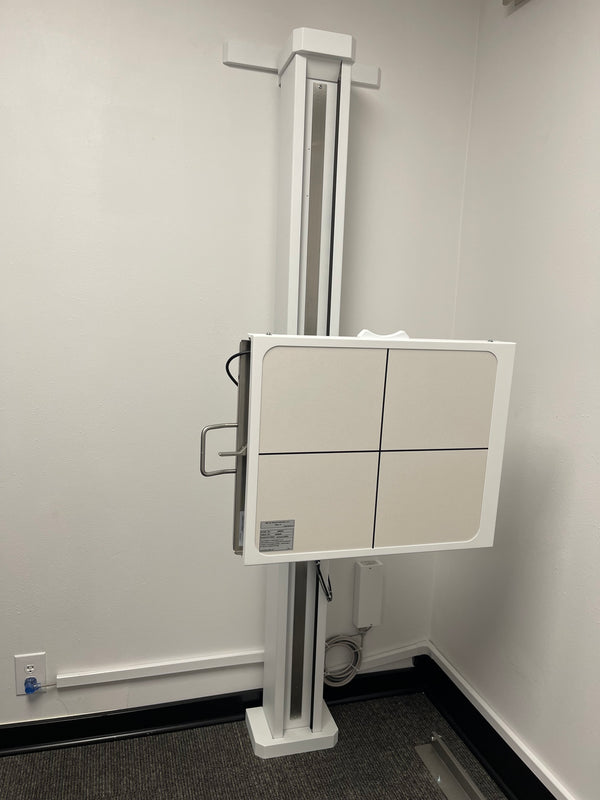

S102 Tilting Wallstand with:
• Tilt mechanism + 90 to – 45 degrees from vertical
• Electric lock for vertical travel.
• 17” Grid cabinet with front panel • 103 LPI, 10:1 ratio grid, focal range: 40”-72”.
• Heavy-duty tray 03092
Includes DR digital x-ray system 17X17 Tethered Cesium PatientImage Digital XRay Package
