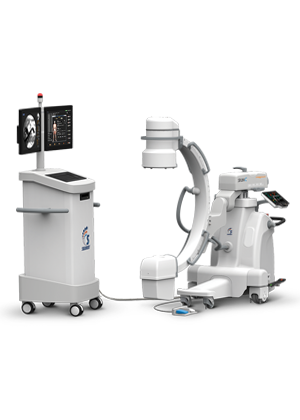

SkanRay SkanC High Frequency Mobile C-Arm Package

Regular price $74,500.00 Sale

What more options?
Lease/Finance $1234.32/month*
Request a Quote? Get an instant quote delivered to your email!
* Monthly finance payment and rates subject to application and credit approval

Product Details

SkanRay SkanC High Frequency Mobile C-Arm Package

The Skan C High Frequency Mobile Surgical C-Arm X-ray Equipment. Ideal for use in Neurology, Orthopaedic, Urology, Gastrointestinal, Pain management, Interventional & Peripheral Vascular Images.

SKAN C, with its compact space-saving design, fits easily in a small work space thereby allowing more free space for all your C-arm applications. A low lateral height helps to reduce skin irradiation levels and also meets low-height patient handling systems.

Benefits of the SkanRay SkanC

  • Safest C-Arm in its class with virtually zero leakage radiation.
  • Pulse Fluoroscopy Mode up to 12mA, produces good-quality images with minimum effective exposure to radiation.
  • Vascular Mode with DSA, Trace, and Road Map tools for efficient vascular applications.
  • Image Capture with 1k x 1k resolution for exceptional image quality.
  • Multi-Mode functionality accommodates vascular, pulsed fluoroscopy, RAD, and fluoroscopy.
  • Virtual Collimation allows ROI selection without additional exposure reducing the dose to the patient.
  • Storage of over 100,000 images eliminating the need for constant image backup.
  • Laser Aimer for accurate positioning of the patient without radiation.
  • 18" x 18" Dual High definition Monochrome LED Monitors.
  • DICOM 3 compliant - Send, Receive, Print, DICOM CD, MWL and MPPS.
  • Line measurement to measure bones or screws during surgery.
  • Snapshot feature produces Digital Radiography image quality in fluoro mode.
  • Studies can be saved in MKV video, JPEG & DCM image formats.
  • SID - 95cm and Free space -75cm.
  • Suitable for Orthopedic, Spine, Neuro, Urology, GI & Vascular.

 SkanRay User Interface

  • 10.4" TFT LCD touch screen display; 67 ft-L Brightness; SVGA 800 (H) x 600(V) resolution; anti-glare w/wide view.
  • Supports optical encoder and hot keys for ease of operation, laser aimer control, and menu-driven operation.
  • X-Ray Tube:
  • Fixed Anode.
  • Nominal Focal Spot Value - 0.6/1.8 as per IEC60336.
  • Maximum Anode Heat Capacity - 56kHU.
  • Maximum Housing Heat Capacity - 1150kHU.
  • Total Filtration - 0.1 inch (2.5mm) of Al eq.

HF X-Ray Generator

  • Mode of operation: Fluoroscopy, Radiography.
  • Maximum Output in Large Focus - [3.5 kW (220VAC-240VC) -- or -- 2.2kW (110VAC)] for 100mS.
  • Maximum Continuous Output in Small Focus - 500W [10 mins].
  • kV Range - 40 -110.
  • Max Tube Current (Large Focus) - 70mA@50kV, 32mA@110kV [220-240VAC] 55mA@40kV, 20mA@110kV[110VAC].
  • Frequency - 80 - 250kHz.
  • Continuous / Pulsed Fluoroscopy.
  • mA Range for Continuous Fluoro - 0.2 to 8mA.
  • mA Range for Pulsed Fluoro - 0.2 to 12mA.
  • Digital Snap Shot - 0.2 to 10mA.


  • Hard & Soft Shudders with Circular IRIS.
  • 26 inch Immersion Depth.
  • 30-inch Clear Space.
  • 18-inch Vertical Travel.
  • 8-inch Horizontal Travel.
  • Orbital Motion - 40° to +90° Max.
  • Virtual Collimation = simulation of collimated area w/out exposure. Controls soft shutter for dense anatomy.
  • display along with soft tissue Collimator rotation control to align with the ROI
  • RIS Collimation - perfect circular collimation with 9 steps of IRIS.

SkanRay SkanC Warranty

  • 5-year parts **Glass is prorated at 20% per year.
  • 1-Year Labor Warranty.
  • Remote Applications training included.
  • Training Onsite Applications training.
