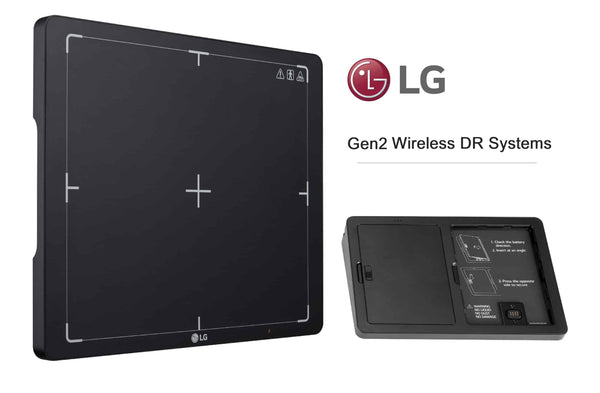

LG GEN2 14×17 WIRELESS DR SYSTEM

• Light yet durable carbon-fiber housing
• IP68 Rated for dust/liquid resistance
• Rapid image availability (3 seconds)
• Highly sensitive Csl AED detector (16 bit A/D conversion
• Lightweight 3.2kg including battery
• Maximum Load Weight: Uniform load 400kg, Point load 200kg

System Includes:

• Cassette-sized 35x43cm (14×17″) Digital X-ray Detector (DXD)
• 2-Bay battery charging station with two (2) Lithium batteries
• Choice of Workstation:
  • Lenovo Tiny-in-One (TIO) Workstation: 512GB SSD with 24″ touchscreen LCD, or
  • Lenovo P53 Notebook computer.

• LG Image Advanced Workstation Software (AWS) to DICOM Store/Send X-ray Images
  • Marking Tools, Annotations, CD Burning, Win/Level, Measurements (lines, angles, etc.)
  • Automatic Image Stitching/Smoothing

Warranty Terms:

• Three Year LG Manufacturer’s Defect Warranty on Detector for Workmanship
  • Extended Warranty for years 4 & 5 are available for purchase.
  • Three Year warranty covers battery charger and batteries
  • Includes Lifetime Drop Protection Coverage provision, with deductible.
• Three Year Lenovo 24/7 Keep-Your-Drive Warranty on Workstation and LCD

Detector Specs:
• 140μm (micron) Pixel Pitch
• Weight: 7.1lbs
• High resolution 2560 x 3072 (7.9MP) Pixel Matrix
• 3 Line Pair (lp/mm) Image Resolution
• 16-bit Dynamic Range
• Displays up-to 65,536 shades of gray
• True 35cm × 43cm (14×17”) active image area
• Cassette-sized detector fits in conventional trays
• Best-in-class Automatic Exposure Detection (AED)
• Direct deposition Csl, for excellent image quality
• Integrated status indicator/message center display
• 2-bay Battery Charging Station
• Two (2) Lithium Polymer rechargeable batteries

LG DR - Premium digital image acquisition
• Lenovo ThinkStation P-series
• Tiny-in-One (TIO) workstation
• 512 SSD, 8GB RAM (min)
• Intel Core i5 (min) with vPro
• Keyboard & mouse
• 24 inch multi-touch monitor
• 64 bit, Win IoT Professional
