Product Details
Enhance your therapeutic ultrasound treatments with the Legend 2 2cm² Ultrasound Applicator. This pre-calibrated sound head is ergonomically designed for comfort and precision, allowing you to deliver effective therapy with confidence and ease. Operating at both 1 and 3 MHz frequencies, it provides the versatility needed to treat a wide range of conditions at various tissue depths. The applicator features advanced coupling detection and monitoring, which alerts you if the connection is suboptimal. This intelligent system ensures that the full dose of energy is delivered to the treatment area, maximizing therapeutic outcomes for your patients.
Key Features and Benefits
- Dual-Frequency Operation: Seamlessly switch between 1 and 3 MHz frequencies to effectively treat both superficial and deep tissues.
- Ergonomic Design: The sound head is thoughtfully designed for comfortable handling, reducing fatigue during prolonged use.
- Advanced Coupling Detection: An intelligent monitoring system provides real-time feedback and alerts to ensure optimal connection and energy delivery.
- Pre-Calibrated: Arrives ready to use right out of the box, saving you time on setup and calibration.
- Precision Treatment: The 2cm² applicator size is ideal for targeting smaller, specific treatment areas with accuracy.
- Optimal Size: The 2cm² head is perfectly suited for treating smaller joints and targeted muscle areas with precision.
- Seamless Integration: Designed specifically for use with the Intelect Mobile 2 Combo system, ensuring compatibility and reliable performance.
- Ergonomic Design: Built for comfort and control, allowing the practitioner to maintain consistent contact during treatment sessions.
- Durable Construction: Made with high-quality materials to withstand the demands of a busy clinical environment.
Specifications
- Size: 2 cm²
- Compatibility: Intelect Mobile 2 Devices
- Availability: For sale in Canada only

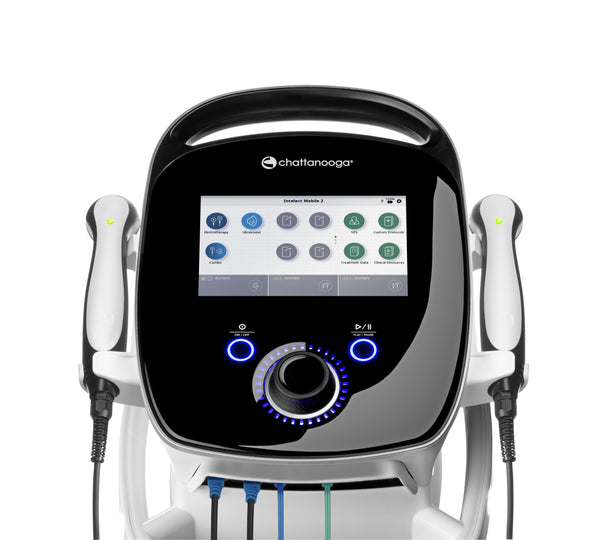

The Intelect Mobile 2 Combo is a state-of-the-art electrotherapy and ultrasound system designed to meet the dynamic needs of the modern practitioner. Combining multiple therapeutic modalities into a single, intuitive device, it allows for comprehensive treatment both in the clinic and in patients' homes. With its lightweight design, high-resolution touch screen, and intelligent user interface, the Intelect Mobile 2 Combo empowers clinicians to deliver precise, effective, and customized care with unparalleled ease and efficiency.
Advanced and User-Friendly
- Intuitive Interface: Navigate treatment options effortlessly on the full-color 7" high-resolution touch screen, enhanced with interactive lights that indicate device status.
- Evidence-Based Protocols: The built-in Suggested Protocol Setting (SPS) provides evidence-based recommendations, while the high-resolution anatomical library aids in patient education.
- Future-Proof Technology: Keep your device at the forefront of therapeutic technology with easily upgradable software.
- Customizable Treatments: Store and manage custom protocols tailored to your specific patient needs, and easily import or export treatment data via Bluetooth.
Portable and Ergonomic

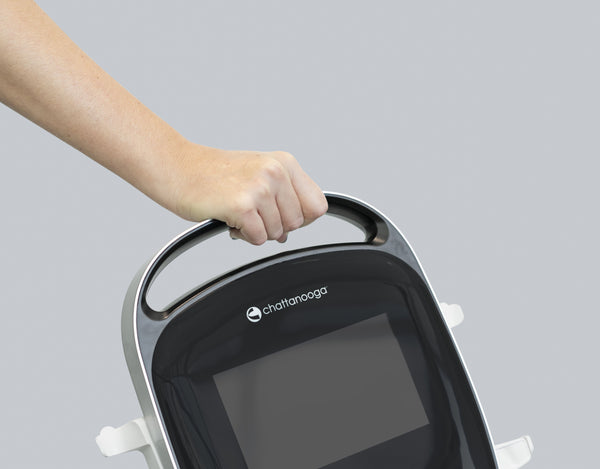

- Designed for Mobility: A lightweight build and an ergonomically designed handle make it easy to transport between treatment rooms or to a patient's home.
- Home Use Compliant: Fully compliant with IEC 60601-1-11 standards, allowing for safe and effective use in home care settings.
- Optional Accessories: Enhance portability and organization with a custom carry case or a mobile cart featuring storage drawers and large wheels.
Versatile Waveform Options
The Intelect Mobile 2 Combo offers a comprehensive range of 25 waveforms to support a wide variety of therapeutic applications:
- Interferential Current (Traditional IFC, 4-pole)
- Premodulated IFC (2-pole)
- Asymmetrical & Symmetrical Biphasic current (TENS)
- VMS, VMS Burst, VMS FR
- Isoplanar & Dipole
- Monophasic (Triangular Pulsed, Rectangular Pulsed)
- Galvanic (Continuous, Interrupted, Low Level)
- Russian, Träbert, Han Stimulation, & Microcurrent
- Diadynamic (LP, MF, DF, Cpid/Cpiso)
- Surged Monophasic (Triangular, Rectangular)
What's Included:
- 6 x 8 cm Carbon Electrodes (4x)
- Stim Ch 1/2 Leadwire Kit
- Ultrasound Gel Bottle (250 ml)
- Dura-Stick® Plus 5 cm (2”) cloth, square electrodes
- 5 cm² Ultrasound Applicator for Intelect Mobile 2
- USB Drive for Intelect Mobile 2
- Printed Quick Start Guide
- Chattanooga Straps
- EU Power Cord for Intelect Mobile 2
General
| Main input voltages | 100-240V AC, 1.0 to 0.42A, 50/60Hz |
| Electrical Class | Class II |
| Mode of operation | Continuous |
| Dimensions / Weight (no battery, excluding cart) | 340 x 355 x 150 mm / 3.1 Kg |
| Conformity | This device complies with the applicable standards EN/IEC 60601-1 and 60601-1-11, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1 |
| CE 2797 | Classification according to MDD : class IIa device 93/42 60601-1 |
| Legal manufacturer | DJO France SAS - CE 2797 |
Ultrasound
| FREQUENCY | 1MHz; 3 MHz |
| DUTY CYCLES | 10%, 20%, 50%, Continuous |
| PULSE REPETITION RATE | 16,48, or 100 Hz |
| PULSE DURATION |
1-31.25 ms - Max (ON): 31.25 ms - Min (OFF): 5 ms |
Ultrasound applicator
| Ultrasound applicator Frequency |
1cm²
|
|
2cm²
|
|
5cm²
|
|
|
1MHz |
3MHz |
1MHz |
3MHz |
1MHz |
3MHz |
|
| Effective Radiating Area ERA INTL (cm²) |
1 |
0.9 |
1.5 |
1 |
2.5 |
2.7 |
| Max Output power in Continuous mode |
2W |
1.8W |
3W |
2W |
5W |
5.4W |
| Max Output power in Pulsed mode |
3W |
2.7W(*) |
4.5W |
3W |
7.5W |
8.1W |
| Max Amplitude in Continuous mode |
2W/cm² |
2W/cm² |
2W/cm² |
2W/cm² |
2W/cm² |
2W/cm² |
| Max Amplitude in Pulsed mode | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² |
Electrical Type (Degree of protection)
| ULTRASOUND | Type BF |
| ELECTROTHERAPY | Type BF |
| ELECTROTHERAPY VACUUM | Type BF |
| ELECTROTHERAPY & ULTRASOUND | Type BF |
Vacuum
| POWER INPUT | 0-25 Vdc, maximum peak current 4A |
| ELECTRICAL TYPE | Type BF |
| VACUUM RANGE | 0 to 600 mbar maximum +/-5% |
| VACUUM MODES | Continuous or Pulsed Continuous 10 setting over vacuum range, 60 mbar per setting, +10 mbar to 10 mbar per setting |
