GP-10-DR Portable System with Toshiba DR Panel

Regular price $74,300.00 Sale

Product Details

GP-10-DR Portable System with Toshiba DR Panel

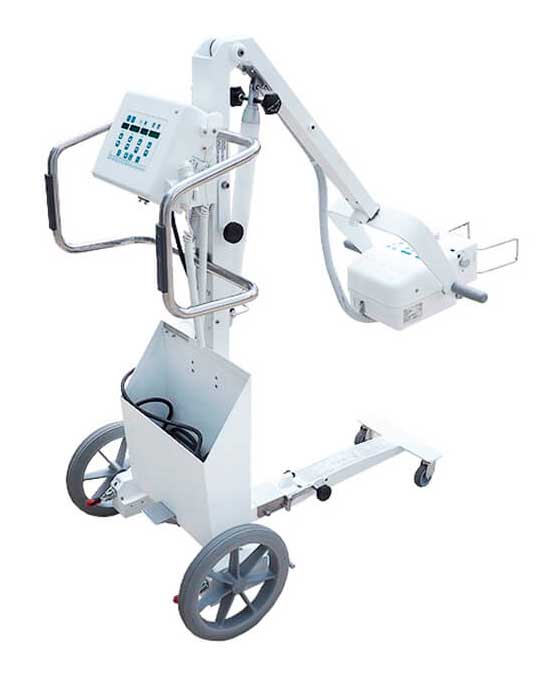

Dragon Portable System, 4.0 kW Lightweight with Toshiba DR Flat Panel
  • 40 to 125 kVp in 1 kVp steps
  • 125 kVp@ 32 mA, 100 kVp@40 mA, 50 kVp@80 mA, 40 kVp@ 100 mA
  • 14 mA Stations: 5, 6, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 & 100
  • 0.001 - 10 Second exposure time range, 0.1-250 mAs
  • Allows customization of 6 APR regions (skull, thorax, spine, abdomen/pelvis, lower and upper extremities) - small, medium, large, and pediatric patient sizes
  • 0.5mm - 1.8mm stationary anode x-ray tube, 47,215 kHU on 4kW unit
  • 0.6mm - 2.8mm stationary anode x-ray tube, 40,000 kHU on 8kW unit
  • Line Voltage: 110/220 VAC
  • Generator integration with 17'' touch screen operator console
  • Foldable T-Shape Leg/ Plastic Wheels
  • 360° Rotation of Tube Head
  • Power Cord 20 feet long, Exposure Cord 10 feet long
  • Stand on base with mechanical brakes on rear wheels
  • Front steering wheels and rear main transport wheels
  • 17.5" to 78.7" Vertical tube travel (44.5cm - 200cm)
  • Manual collimator with centering light and SID measuring tape
  • 170.9-pound total weight
  • Line power detection system checks what incoming power is provided and once available power is determined, the exposure parameters are modified to accommodate the available power


          Toshiba 14"x17" Tethered DR Panel
          • Active area 350 (H) x 43 Mmm (14x17")
          • Cesium Iodide (Csl) with Amorphous Silicon (a-Si) photodiode
          • 2448 (H) x 2984 M Pixel Matrix; 143-micron Pixel Pitch
          • Short Cycle Time: Shot to Shot 6 sec.
          • Limiting Resolution: 3.7 Ip/mm typical
          • MTF (2.0Lp/mm, 70kVp, 1x1) 36% typical; DOE >70%
          • 16 bit ND  conversion; Energy Range: 40-150kVp
          • 4 mR / frame maximum entrance dose
          • Power Supply Unit
          • Sensor weight: 6.6 pounds (3kg)


          lmagePlus Digital Acquisition System
          • Symphony Image Processing Software to improve image contrast, adjust dynamic range, enhance details and reduce noise, to produce
          • the highest quality images
          • Generator Integration allows the software to control the generator
          • Image Management (PACS, HIS/RIS)
          • DICOM communication, full DICOM 3.0 Compatibility, DICOM worklist from HIS/RIS, store images through PACS network system,
          • DJCOM image print, DJCOM MPPS

            QPTIONAL_:_    Wireless Detector in place of Tethered Detector,

            *This product has been permanently discontinued.

            Replacement products available.
