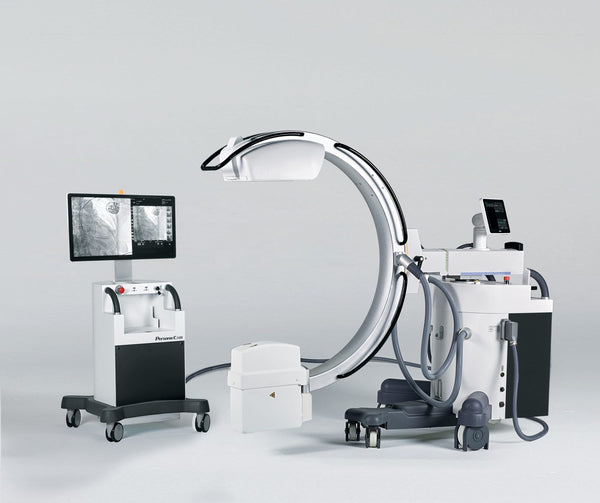

Fujifilm - Persona C HR

Overview:

The Persona C HR Mobile Fluoroscopy System delivers exceptional imaging capabilities precisely where you need them. Engineered for complex vascular, orthopedic, and spine procedures, this system balances high-power performance with a lightweight, maneuverable design. With its advanced generator and high-resolution detector, surgical teams can rely on consistent, detailed visuals without compromising on workflow efficiency or safety.

Designed specifically to maximize surgical efficiency, this system removes common obstacles that delay procedures, allowing surgical teams to focus entirely on patient outcomes. By eliminating the reliance on batteries and optimizing the physical footprint of the equipment, the Persona C HR offers a lightweight, maintenance-friendly solution that integrates seamlessly into busy surgical suites. From rapid setup to precise imaging, every element works to enhance workflow, ensuring that diagnostic support is always available the moment it is needed.

• High-Power Performance: Equipped with a robust 25 kW generator, the system ensures reliable power output for demanding clinical environments.
• Superior Image Clarity: The high-resolution IGZO detector provides sharp, detailed images, crucial for intricate surgical guidance.
• Ultra-Low Dose Imaging: Prioritizing patient and staff safety, the system is designed to deliver high-quality visuals while minimizing radiation exposure.
• Seamless Motion: Active cooling allows for prolonged operation without overheating, while 30 fps fluoroscopy ensures smooth, real-time imaging during critical moments.
• Versatile Imaging Modes: Includes dedicated Radiography (snapshot) modes to capture static images instantly when documentation is needed.
• Surgeon-Friendly Design: The spacious C-arm architecture offers ample room for positioning, making it easier to work around patients and other equipment in the operating room.

Performance at every angle:

• Unmatched Accessibility: Featuring an expansive 82cm opening—the largest in its class—and weighing nearly 200 lbs less than comparable systems, this unit glides effortlessly across the floor. This lightweight design ensures fast, accurate positioning and makes transport between rooms seamless.
• Responsive Maneuverability: Experience agile flexibility with unhindered access to the operating area. The C-arm’s orbital and angular rotation is perfectly balanced to respond intuitively to the operator's touch, while color-coded brakes and axes allow for rapid repositioning. Navigating obstacles like cables is simplified with easy-lift front wheels.
• Command from Anywhere: Absolute operability is achieved through a sophisticated multi-touch console that provides full image control from any stance. Live imaging capabilities ensure the operator maintains direct command over the surgical procedure without interruption.

Designed around the surgeon:

The Persona C HR Mobile Fluoroscopy System is engineered to bring absolute clarity and seamless control directly into the sterile field. Built with a philosophy that places the surgeon at the center of the workflow, this system eliminates the barriers between the operator and the image. By placing critical controls within arm’s reach and delivering visuals with exceptional sharpness, the Persona C allows surgical teams to operate with greater confidence and speed, ensuring that focus remains strictly on the patient and the procedure at hand.

• Unrivaled Visual Clarity: The system centers around a massive 32-inch 4K touchscreen display that brings ultra-sharp, high-resolution detail to every procedure. With fully adjustable height and viewing articulation, the screen adapts to the surgeon's line of sight, reducing eye strain and neck fatigue. The intuitive interface provides large, easy-to-read thumbnails and images, allowing for rapid real-time guidance and effortless document management.
• Surgeon-Centric Control Console: Maintain command of the operation without stepping away from the patient. The Surgeon's Console is designed to be always within reach, directly linking you to the surgical procedure. Live and saved images are displayed alongside essential control commands—such as select, edit, move, send, and compress—allowing for immediate adjustments with a simple touch of an icon.

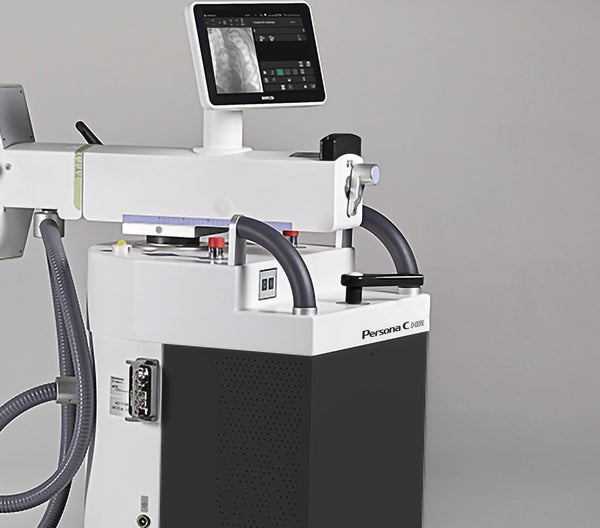

• Accessible Operator Console: Efficiency extends to the entire surgical team with a C-Arm mounted Operator Console. This ensures that the technologist or operator has immediate access to system controls, streamlining communication and adjustments during critical moments of the surgery.
• Seamless IT Integration: The Persona C fits effortlessly into existing hospital infrastructures. With convenient I/O ports designed for simplified connectivity, the system ensures fast and reliable integration with your facility's IT network for easier data transfer and management.

Precise Movement:

The Persona C HR is built to move exactly how you need it to, reducing the physical strain on operators and minimizing disruptions during critical procedures.

• Wide Orbital Rotation: Achieve necessary oblique projections with an orbital rotation range from +65° to –95°, eliminating the need to physically move the entire stand around the operating table.

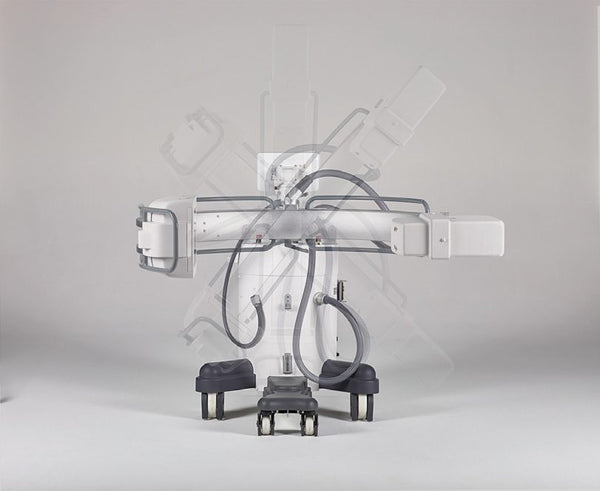

• Extensive Angular Rotation: Access difficult anatomical views with ease thanks to wide angles of more than +/- 275° around and in front of the patient.

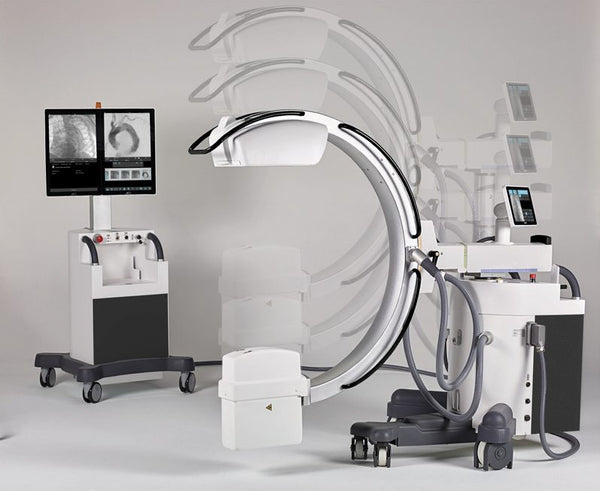

• Generous Up/Down Movement: A vertical movement range of 18 inches (450mm) accommodates various table heights and operator preferences, prioritizing comfort during long cases.
• Color-coded Brake-Axis: Set up and reposition the system quickly with intuitive, color-coded controls that simplify axis adjustments.

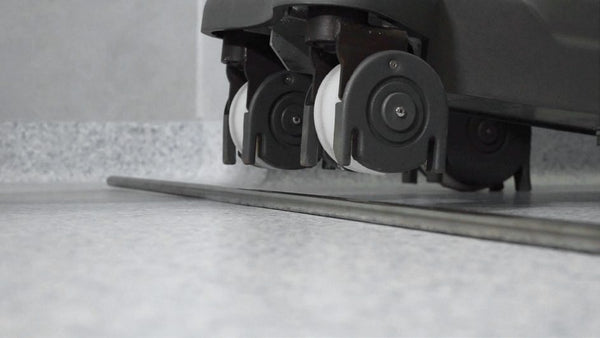

• Easy-lift Front Wheels: Navigate the operating room environment safely, gliding over cords and floor transitions without jarring the system.

Intelligent imaging & power:

• High-Sensitivity Visualization: equipped with a 30x30cm Indium Gallium Zinc Oxide (IGZO) detector, the system provides higher sensitivity and lower electronic noise than conventional detectors. This delivers exceptionally clear images at lower doses, ideal for detailed fluoroscopy in intricate cases.
• Adaptive Dose Management: The removable 8:1 grid allows for immediate adaptation to patient needs, supporting low-dose pediatric surgery and grid-less procedures without compromising image quality.

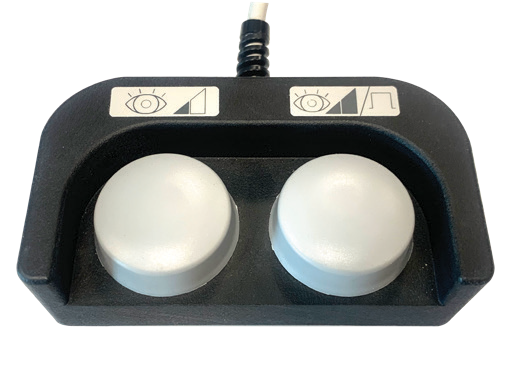

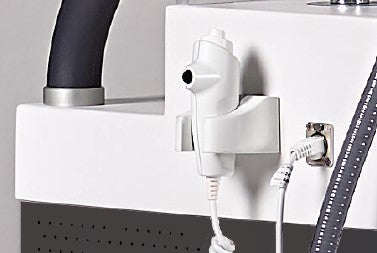

• Intelligent Power Modulation: Pulsed x-ray emission is automatically tailored to each procedure, striking the optimal balance between image fidelity and radiation dose. Operators can easily manage exposure via a foot switch or multi-function hand switch.
• Reliable High-Output Performance: A powerful 25kW generator ensures consistent energy output while maintaining low operating temperatures, making it suitable for extended procedures and heavy daily caseloads.
• Extended Durability: The active cooling system reduces tube heat by as much as 50%, minimizing heat buildup to prevent delays during long surgeries.
• Advanced Vascular Tools: For specialized requirements, the system supports optional advanced imaging modes, including Digital Subtraction Angiography (DSA) with Dual-Phase Angiography and Road-mapping.

Surgical efficiency:

The operating room demands unwavering precision and speed, where every second impacts patient outcomes. The Persona C HR Mobile Fluoroscopy System is engineered to meet these rigorous standards, delivering a streamlined imaging solution that prioritizes surgical efficiency. By eliminating the heavy battery found in traditional C-arms, this system offers an exceptionally lightweight design that is effortless to maneuver around the patient and the sterile field. There is no need to worry about charging schedules or power degradation; the system is optimized for continuous use in busy surgery suites, ensuring it is always ready to perform.

• Optimized Mobility and Safety: The optional wireless magnetic footswitch removes cable clutter from the floor, reducing tripping hazards and allowing staff to position the control exactly where it is needed for maximum comfort and accessibility.

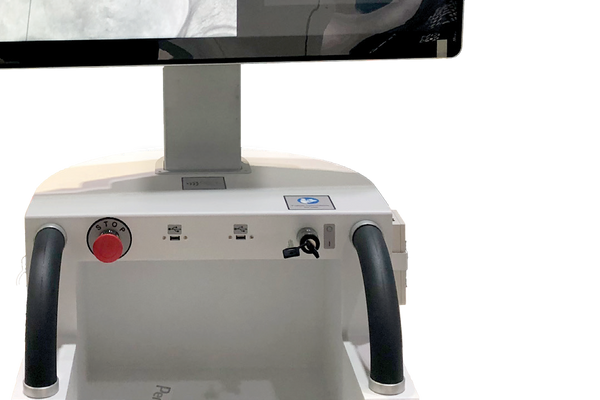

• Immediate System Access: Vital seconds are saved with the built-in NFC device, allowing for instant, secure login so the team can get to work immediately without navigating complex menus.
• Precision Positioning Without Radiation: Achieve perfect alignment before taking an exposure. This is the only system featuring precision laser localizers on both the x-ray tube and the flat panel detector, allowing for "Zero Dose" centering. This ensures the anatomy is centered correctly without exposing the patient or staff to unnecessary radiation.
• Maintenance-Free Power: The battery-free design not only reduces the physical weight of the unit for easier transportation but also eliminates the maintenance costs and downtime associated with battery replacements and charging.
• Crystal Clear Visualization: Diagnostic confidence is paramount. The system features a 4K high-resolution surgeon’s display, fully certified for medical use, providing the sharp contrast and detail necessary for critical decision-making during procedures.
