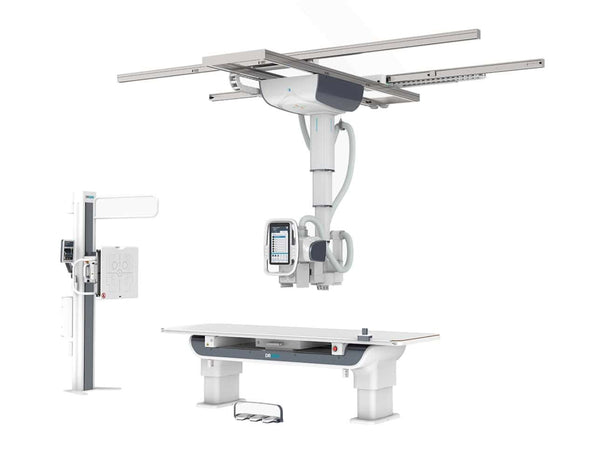

DRGEM Auto Positioning Systems

Experience optimized workflow and maximize your performance Maximize Your Performance Fully automated streamline workflow offering auto tracking and positioning features, increasethroughput and enhance the experience of patients and operator focusing more on patientcare. Fully motorized auto-positioning provides precision positioning to...

Finance Program (Learn More) Click here to apply for our in-house financing

Need a quote? Get an instant quote delivered to your email!

We value your privacy and will not sell your information to anyone.

Product Details
Product Reviews
Shipping & Returns

Product Details

Experience optimized workflow and

maximize your performance

Maximize Your Performance

Fully automated streamline workflow offering auto tracking and positioning features, increase
throughput and enhance the experience of patients and operator focusing more on patient
care. Fully motorized auto-positioning provides precision positioning to both the wall stand
and table with speed and effortless movements. The combination of automation with the
pre-programmed RADMAX procedure and the automated RADMAX image processing gets you up to speed, for maximum efficiency.

WBS-TA Deluxe

Automatic Tilting Wall Bucky Stand

Auto Rotating Touch Screen Console

Multiple Control Options for Convenience and Efficiency

RADMAX Work Station

Tube Stand
Touch Screen (15.6 inch)

Remote Control

Control Panel of Wall Bucky Stand
(on the both side)

WBS-TA Deluxe 10.1 inch LCD

Handgrip Switch

Wireless foot switch Wired foot switch

Motorized Vertical Movement (Up / Down) Release all of lock (Lateral / Longitudinal)

45∞ Bucky Rotating

The length gets 1.4 times longer when it rotates, which helps take better X-ray images of tall
patient's arm and leg bones.

WBS-TA (Deluxe)

PBT-6 (Deluxe)

Auto Positioning ñ Wall Bucky Stand

Chest radiography positioning at SID 180cm(S2) by one touch operation.
Abdomen at SID 100cm(S1) by one touch operation
Vertical synchronization between wall bucky and tube is available.

Wall Bucky Centering (Tilted Wall Bucky Synchro)

Tube tracking the center of Wall Bucky in vertical movement and tube rotating
to expose the tilted Bucky perpendicularly at the same time.

Table Bucky Tracking

Bucky follow Tube

Vertical Synchronization

Tube follow Bucky

Auto Stitching

Wall Bucky Stand

Patient Table

Precision Movement Control

The operator can precisely control the Tube Stand position (Longitudinal Direction), Tube angle, and WBS height via the RADMAX control panel without directly approaching the equipment. Precision Movement Control functions enable intuitive and convenient operation.

Diagnostic Confidence

Full Featured Imaging software & Excellent Digital Image Processing

RADMAX offers high-performance imaging, intuitive user interface, high throughput and efficiency. Built-in anatomical view based digital image processing automatically enhances the image quality. In favor of Real-time image adjustment and 9 preset views, always consistant and optimized image gives radiologist Diagnostic Confidence.

Positioning Guide

Positioning Guide provides operators with patient position and x-ray technique by intuitive
graphical information to get the best image quality for the highest effectiveness of diagnosis.
The feature is also beneficial for training or educational purposes.

Live Streaming Camera

Display the live streaming on RADMAX and THU to monitor patientís position.

Patient Movement Detection

RADMAX can detect patient movement, and alert the operator before the X-ray exposure.

Virtual AEC Field

By displaying the AEC Field Area virtually, operator can accurately align and match the AEC Field area with the patient's body during patient positioning. It prevents X-ray retakes and helps in acquiring best quality images.

AI-Based Diagnostic Assistance

Bone Suppression

AI-Based Bone Suppression for soft tissue imaging of Digital Chest Radiography.

Scatter Reduction

This software-generated grid feature helps improve image quality by reducing radiation
scatter without using physical grids.

Applicable Detectors

Patient Safety

Preventing collisions with safety sensors

Emergency Stop Switches

Patient Dose Management

AEC Automatic Exposure Control, Limiting X-ray dose to patients
DAP Dose Area Product, Measuring dose to patient
RDSR Radiation Dose Structured Reports for DICOM standard
Carbon Fiber Tabletop Superior X-ray transmittance, 270% less X-ray absorption

High Frequency X-ray Generator
