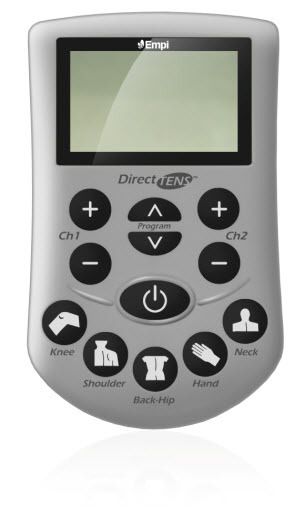

Chattanooga Direct Tens

Take control of your pain management and muscle recovery with the Physio, a professional-grade stimulation unit designed for effective home use. This device bridges the gap between clinical therapy and daily convenience, offering a powerful solution for those seeking relief from chronic discomfort or looking to accelerate rehabilitation. Its intuitive design allows you to target specific muscle groups with precision, delivering therapeutic electrical impulses that help alleviate pain and promote relaxation without the need for complex setups.

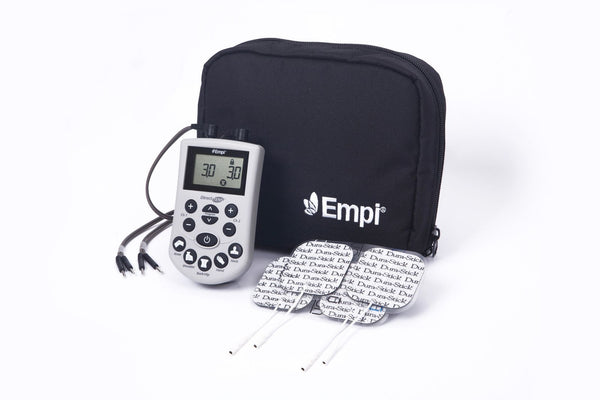

Versatility sits at the core of the Physio’s performance. Equipped with dual-channel output, the device allows you to treat two different areas of the body simultaneously or cover a larger area of pain using four electrode pads. You are never limited to a single type of therapy; the unit comes pre-loaded with 13 specific programs designed to address a wide range of physical needs. For those moments when you need immediate relief, the five "quick select" programs allow you to start a session instantly, removing the guesswork from your recovery routine.

Key Features and Benefits

• Dual-Channel Output: Two independent channels allow for the simultaneous stimulation of different muscle groups or pain sites, offering a comprehensive treatment experience.
• Extensive Program Selection: Comes equipped with 13 pre-set programs, including 5 quick-select options, allowing you to start effective therapy immediately.
• Versatile Stimulation Modes: Features five distinct stimulation programs—Pulse, Burst, Continuous, Mixed Frequency, and Multi-modulation—to tailor the therapy to your specific condition.
• Advanced Waveform Technology: Utilizes an asymmetrical biphasic, 100% compensated waveform to ensure safe, comfortable, and effective delivery of electrical impulses.
• Consistent Power Delivery: Maintains constant voltage up to a resistance of 1000 ohms with a maximum amplitude of 40mA, ensuring the intensity remains stable throughout your session.
• High-Frequency Capability: Adjustable frequency up to 1,000 Hz and pulse duration up to 250 μsec allow for deep customization based on therapeutic goals.
• User-Friendly Interface: The large LCD display and ergonomic soft push buttons make navigating settings and monitoring treatment progress simple.
• Portable and Convenient: Powered by standard AA batteries (disposable or rechargeable), the unit is lightweight and portable, perfect for therapy on the go.
• Adjustable Timer: Set specific treatment durations to adhere strictly to recommended therapy protocols.

Indications

• Symptomatic relief and management of chronic, intractable pain.
• Adjunctive treatment for post-surgical and post-traumatic acute pain conditions.
• Relaxation of muscle spasms and prevention of disuse atrophy.
• Increasing local blood circulation and muscle re-education.
• Immediate post-surgical stimulation of calf muscles to prevent venous thrombosis.
• Maintaining or increasing range of motion.

Specifications

• Waveform: Asymmetrical biphasic, 100% compensated
• Voltage: Constant voltage up to resistance of 1000 ohms
• Maximum Amplitude: 40mA @ 1000 ohms, 250µsec
• Pulse Duration: Up to 250 μsec
• Frequency: Up to 1,000 Hz
• Power Source: 2 x 1.5V AA Batteries or 2x 1.2V AA rechargeable batteries
