Product Details

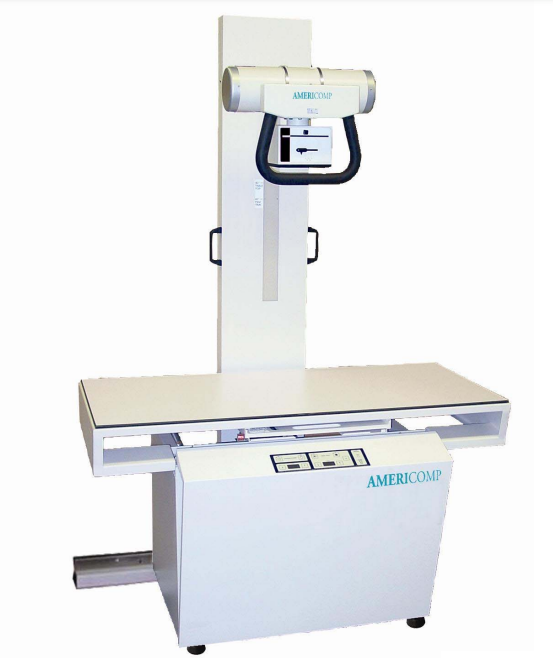

AV30HF Veterinary X-ray System with:
High Frequency Generator
• 30 kW rating
• Technique selection : kVp/mAs
• Operator console at table base
• kVp range: 40 – 125
• mA range : 50 - 300, mAs range: 0.5 to 400
• Digital mA, kVp and mAs readout
• Digital diagnostic readout
• Built - in tube protection circuit
• UL Classified
• For operation on 1 phase, 208 - 277 VAC electrical serv ice, 08168 - 001
Table / Tubestand
• Stationary top table : 53 in. x 24 in.
• Enclosed, integrated radiographic table
• Welded base construction
• Variable vertical & horizontal tube travel
• Grid cabinet, 103 LPI, 8:1 ratio grid, stainless steel tray B144
• Angulation indicator and operator handgrips
• Foot switch with 20 ft. cord
X-Ray Tube A120
• 1.0 – 2.0 mm F.S., 140,000 H.U. with 90° horns
Cables A0012
• 12 ft. high voltage cables with federal terminations
Collimator 07614 - 001
• Manual collimator with LED, single laser bucky line, swivel
• Field light “on” time – select able 3 0, 45 or 60 seconds
Parts Warranty
• System: 5-years, X-ray tube: 5-years pro-rated
