Overview:

Medical professionals no longer have to choose between high-performance imaging and portability. The ARIETTA 650DI is engineered to deliver console-grade diagnostic capabilities within a streamlined, compact chassis. Designed to serve as a dependable workhorse for outpatient facilities or a mobile solution for dynamic hospital environments, this system ensures you have access to leading-edge technology wherever your patients are. By utilizing advanced cognitive recognition, the system strips away electronic noise to reveal pristine anatomical details, providing the clarity needed for confident decision-making even during difficult deep-tissue scans.

At the heart of our system lies DeepInsight, a revolutionary cognitive recognition technology that redefines image enhancement. DeepInsight intelligently processes vast amounts of data to extract only the most critical information, stripping away the visual clutter that often obscures essential details. The result is a pristine, natural representation of tissue structures that reveals what was previously hidden.

ARIETTA 650DI General Imaging:

Uncompromised Image Clarity: Powered by integrated DeepInsight Technology, the system intelligently distinguishes between tissue structures and electronic noise. This results in remarkably clear images that maintain high resolution at depth, allowing for precise visualization in challenging cases.
True Mobility: The reduced physical footprint allows for effortless navigation through crowded wards and tight spaces. When equipped with the optional battery unit, the ARIETTA 650DI offers untethered operation, enabling continuous scanning without the need to immediately locate a power outlet.
Multi-Specialty Versatility: Maximize the utility of your equipment with a system that adapts to various clinical needs. The ARIETTA 650DI is easily configured for cardiac, vascular, and OB/GYN applications, making it a highly efficient shared service solution for multidisciplinary medical teams.
Efficient Workflow Design: Experience the benefits of a system that balances size and power. The ergonomic, compact design minimizes strain during transport and use, while the intuitive interface ensures that advanced diagnostic tools are always within reach.

Advanced Technology:

Unveils Complex Structures: Successfully visualize fine and intricate tissue details that were previously masked by digital noise or heterogeneous focusing, ensuring no critical detail goes unnoticed.
Intelligent Data Extraction: Utilizes advanced cognitive recognition to sift through massive datasets, isolating necessary information to produce cleaner, high-definition images without manual adjustment.
Enhanced Diagnostic Confidence: delivers a more natural and accurate representation of tissue architecture, reducing ambiguity and supporting more precise clinical evaluations.
Noise Reduction: Automatically filters out visual interference, providing a stable and clear view even in challenging imaging scenarios.

Advanced and unique probes:

Advanced and Unique Probes: The system supports a comprehensive range of specialized probes tailored for diverse clinical applications. These probes deliver exceptional sensitivity and resolution, enabling precise visualization of fine structures and subtle tissue changes across various body types.
DeepInsight Technology: Experience superior image quality with noise reduction technology that preserves crucial tissue details. This ensures clear, high-contrast images that support confident decision-making in complex cases.
Ergonomic Design: The monitor arm and console are fully adjustable, allowing for optimal positioning in any examination room. This flexibility helps minimize repetitive stress for the operator while accommodating patients comfortably during procedures.
Streamlined Workflow: Intelligent automation tools and a user-centric control panel help reduce examination times. By automating routine adjustments, the system allows for faster patient throughput without compromising diagnostic accuracy.

L441

Vascular Transducer

Array Type: Linear
Frequency Range: 12 – 2 MHz
Scan Width: 38 mm Width

L64

Breast, Small Parts, Thyroid Transducer

Array Type: Linear
Frequency Range: 18 – 5 MHz
Scan Width: 38 mm Width

L34

Vascular Transducer

Array Type: Linear
Frequency Range: 7 – 3 MHz
Scan Width: 38 mm Width

L55

Breast, Small Parts, Thyroid Transducer

Array Type: Linear
Frequency Range: 13 – 5 MHz
Scan Width: 50 mm Width

L53K

Hockey-Stick Transducer

Array Type: Linear
Frequency Range: 15 – 3 MHz
Scan Width: 25 mm

C252

Single Crystal Abdomen Transducer

Array Type: Convex
Frequency Range: 6 – 1 MHz
Scan Width: 50 mm Radius
Scan Angle: 70° FOV

C35

Abdomen Transducer

Array Type: Convex
Frequency Range: 8 – 2 MHz
Scan Width: 50 mm Radius
Scan Angle: 70° FOV

C421

Abdomen Transducer

Array Type: Convex
Frequency Range: 12 – 3 MHz
Scan Width: 21 mm Radius
Scan Angle: 85° FOV

C23

Abdomen Transducer

Array Type: Convex
Frequency Range: 8 – 2 MHz
Scan Width: 50 mm Radius
Scan Angle: 70° FOV

VC35

3D/4D Abdomen, Obstetrics Transducer

Array Type: Convex
Frequency Range: 8 – 2 MHz
Scan Width: 46 mm Radius
Scan Angle: 72° FOV

C41V1

Transvaginal Transducer

Array Type: Convex
Frequency Range: 10 – 2 MHz
Scan Width: 10 mm Radius
Scan Angle: 200° FOV

VC41V

3D/4D Transvaginal Transducer

Array Type: Convex
Frequency Range: 8 – 2 MHz
Scan Width: 10 mm Radius
Scan Angle: 145° FOV

C41V

Transrectal Biopsy & Guidance Transducer

Array Type: Convex
Frequency Range: 8 – 4 MHz
Scan Width: 10 mm Radius
Scan Angle: 200° FOV

S11

Single Crystal Adult Transducer

Array Type: Phased
Frequency Range: 5 – 1 MHz
Scan Angle: 90° FOV

S31

Abdomen, Cardiology, Pediatric Transducer

Array Type: Phased
Frequency Range: 9 – 2 MHz
Scan Angle: 90° FOV

S42

Neonatal Transducer

Array Type: Phased
Frequency Range: 14 – 3 MHz
Scan Angle: 100° FOV

S3ESEL

Adult TEE

Frequency Range: 8 – 2 MHz
Scan Angle: 100° FOV
Diameter: 15.5mm

Imaging Features:

System Features:

Streamlined Workflow: The intuitive interface reduces necessary keystrokes and simplifies complex adjustments. This design philosophy minimizes the time spent navigating menus, allowing sonographers to focus entirely on the patient and image acquisition.
Compact and Mobile: Space is often at a premium in clinical settings. The 650DI features a slim profile and lightweight design, making it effortless to maneuver between exam rooms or position bedside in crowded wards.
Enhanced Efficiency: Built specifically for busy schedules, the system powers up quickly and responds instantly. It supports rapid decision-making, helping departments maintain flow and reduce patient wait times.
User-Centric Ergonomics: Long days of scanning require equipment that supports the user. The adjustable monitor and control panel allow for comfortable positioning, helping to reduce physical strain during back-to-back exams.

Ergonomics

Swiveling, height-adjustable control panel drops to 40” from the floor to facilitate lower extremity exams. Monitor mounted on a separately articulating arm for wide range of motion.

Protocol Assistant

Provides customizable automation to assist users by performing routine steps such as annotation and mode changes.

Efficient Workflow

Utilize the pre-set configurations, easy transducer selection, and automated image optimization, all with the touch of just a few buttons.

Mobility

Lightweight, stable and easy to move. Transports with ease from room to room.

GI Imaging:

Renal Imaging:

Pancreas Imaging:

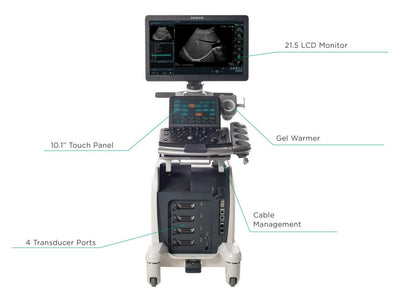

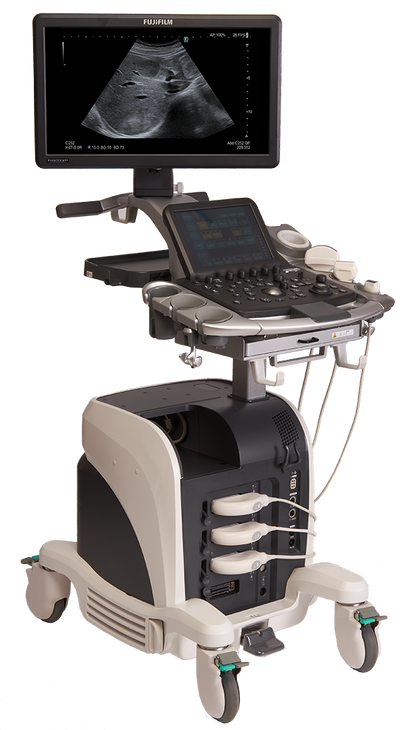

Fujifilm Ultrasound - Arietta 650DI General Imaging
