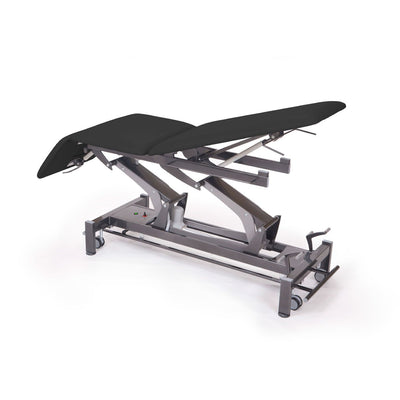

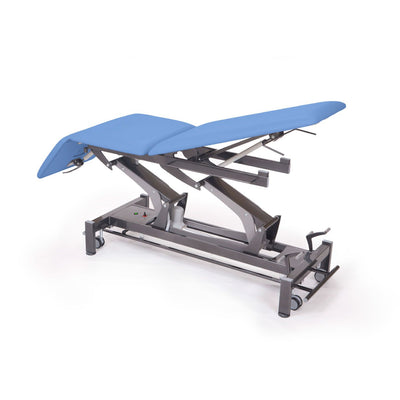

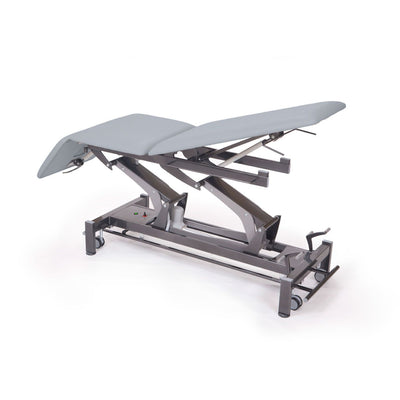

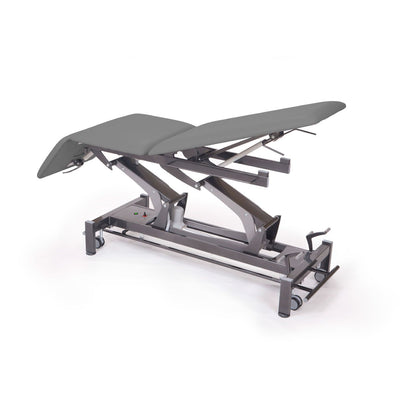

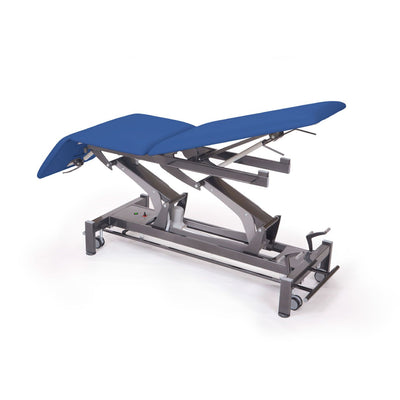

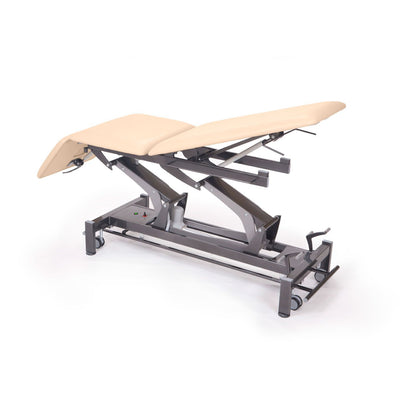

The Montane Table Atlas 3 Section serves as a foundational piece of equipment for modern medical and therapeutic environments. Built to accommodate the rigorous demands of daily clinical use, this treatment table prioritizes both patient safety and practitioner ergonomics. Its robust design features a three-section platform that allows for a multitude of positioning options, making it a versatile choice for examinations, manual therapy, and rehabilitation exercises. By integrating smooth electric adjustments with high-stability components, the Atlas allows therapists to focus entirely on the quality of care they deliver, rather than struggling with equipment setup.

This table is engineered to adapt seamlessly to the needs of diverse patient populations. From the low minimum height that assists patients with limited mobility to the substantial lift capacity, every aspect is crafted to enhance the treatment experience.

Key Features and Benefits

Electric Height Adjustment: The table offers a vast height range from 49 cm to 101 cm. This variability ensures safe and dignified patient transfers from wheelchairs or low levels, while allowing practitioners to elevate the surface to their ideal working height, reducing back strain during treatments.
360˚ Accessible Foot Switch: Adjusting the table height is intuitive and hands-free. The easy-access foot switch is reachable from any position around the table, allowing the therapist to maintain contact with the patient and preserve the flow of treatment without needing to move to a specific control point.
Smooth Vertical Lift: The mechanism provides a smooth, vertical lifting motion with a capacity of up to 150 kg. This ensures that patients are moved securely and comfortably without jarring or lateral movement, maintaining a sense of safety throughout the adjustment process.
Versatile Mobility Options: Available with either a 4-caster system or a 2-wheel version, the table can be easily unlocked for repositioning within the clinic or locked down firmly to ensure a stable, immobile platform during delicate procedures.
Gas Spring Assisted Sections: The head and foot sections are equipped with gas springs, making manual adjustments light and effortless. This allows for rapid changes in patient positioning, including positive and negative inclinations of the head support.
Patient Comfort Features: The head section includes a breathing hole with a removable cushion, ensuring comfort for patients lying in the prone position.
Safety and Stability: Standard side brackets are included to attach stabilizing belts, providing extra security for patients during active mobilization or when the table is used at greater heights.
Optional Motorized Middle Section: For clinics requiring advanced functionality, an optional motorized middle section is available, specifically designed to facilitate postural drainage and other specialized therapeutic angles.
Mobility Options: Choose between a retractable 4-caster system for full mobility or a 2-wheel version depending on your clinic's needs.

Comfort and Convenience for Patients

The comfort and convenience of patients is a top priority in any healthcare setting. This is especially true in chiropractic care, where patients may be experiencing pain or discomfort and need to feel at ease during their treatment.

With this in mind, chiropractic tables are designed to provide maximum comfort for patients. The upholstery used is soft and supportive, allowing patients to relax during their treatment. Additionally, the table can be adjusted to accommodate different body types and sizes, ensuring that every patient receives the same level of comfort.

Indications for Use

The Montane Table Atlas 3 Section is indicated for a wide variety of clinical applications, including but not limited to:

Physiotherapy and Rehabilitation: Ideal for manual therapy techniques, mobilization exercises, and post-operative rehabilitation.
General Medical Examinations: Provides a stable and adjustable surface for routine check-ups and assessments.
Massage Therapy: The adjustable head and foot sections allow for optimal patient positioning during soft tissue work.
Postural Drainage: When equipped with the optional motorized middle section, the table aids in respiratory therapies requiring specific body inclinations.

Technical Specs

Mains Power:	230 V / 50 Hz, 120 V / 60 Hz
Standby Consumption:	3.5 W
Input:	230 V / 1.0 A / 50 Hz, 120 V / 1.9 A / 60 Hz
Weight:	110 kg (242 lbs) plus 30 kg pallet when shipping
Dimensions*:	201 x 69 x 49 - 101 cm
Shipping Dimensions*:	219 x 84 x 75 cm
Lifting Capacity:	150 kg (330 lbs)
Electrical Safety Class:	Class II, Type B
Safety Tests:	Meets Directive 93 / 42 / EEC, Certified to CAN/CSA Standard C22.2 No. 601.1-M90x/A2
* Dimensions are listed as L x W x H
