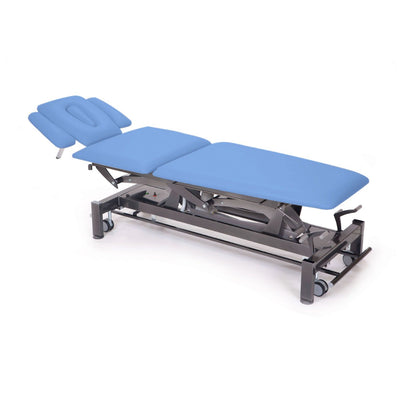

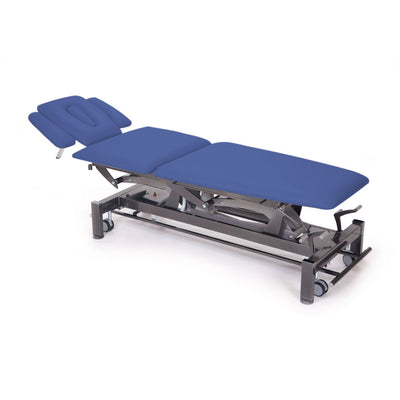

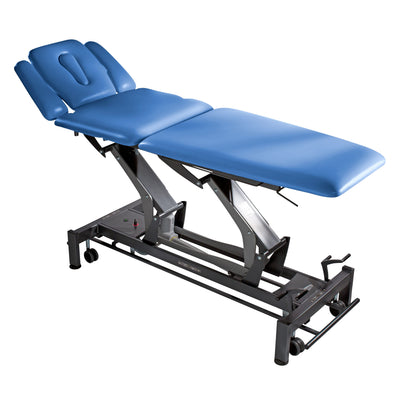

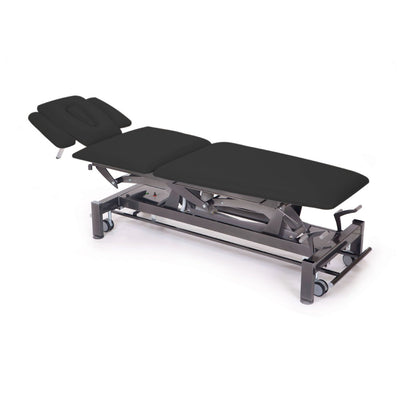

The Montane Table Alps 5 Section is a professional-grade treatment platform engineered to support the dynamic needs of modern physiotherapy and rehabilitation clinics. Designed with a focus on versatility and ergonomics, this table provides a stable and adaptable surface for a wide range of manual therapies. Its robust five-section configuration, featuring specialized fold-down segments in the head section, allows practitioners to position patients with precision, ensuring optimal access and comfort during complex treatments.

This table is built to enhance the workflow of the therapist while prioritizing the safety and dignity of the patient. From the smooth vertical lift to the intuitive hands-free controls, every element of the Montane Table Alps is crafted to reduce physical strain on the practitioner and provide a secure environment for recovery.

Key Features and Benefits

Ergonomic Height Adjustment
The electric high/low height adjustment mechanism offers an impressive range from 49 to 101 cm. This broad range facilitates safe, low-level transfers for wheelchair users or patients with limited mobility, while also allowing the therapist to elevate the surface to the perfect working height. This adaptability helps prevent back strain and fatigue for the practitioner during long shifts.
360˚ Hands-Free Control
Adjusting the table height is effortless thanks to the easy-access foot switch. Accessible from any position around the table—a full 360 degrees—this feature allows you to alter the elevation without breaking contact with the patient or interrupting the flow of treatment.
Versatile Head Section
The head support is fully adjustable with both positive and negative inclinations, assisted by gas springs for smooth, controlled movement. It includes a breathing hole with a removable cushion, ensuring patient comfort during prone positioning. The fold-down segments in the head section provide additional access for shoulder and neck mobilization.
Robust Lifting Capacity

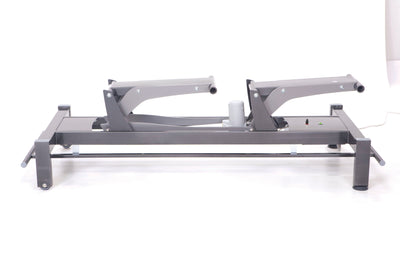

Engineered for durability, the table features a smooth vertical lift system with a weight capacity of up to 150 kg. This robust lifting power ensures steady, shake-free operation, providing a sense of security for patients of various sizes.
Patient Stabilization and Safety
Side brackets for stabilizing belts come as standard equipment, allowing therapists to safely secure patients during vigorous manual therapy or specific mobilization techniques.
Clinic Mobility
The table is designed for flexible integration into your workspace. It is available in either a 4-caster configuration for maximum maneuverability or a 2-wheel version for stationary stability with the option to move when necessary.
Optional Postural Drainage Support
For clinics requiring advanced respiratory therapy capabilities, the table offers an optional motorized adjustable middle section specifically designed to facilitate postural drainage positions.

Indications for Use

The Montane Table Alps 5 Section is indicated for use in professional medical and therapeutic settings. It is ideal for:

Physical therapy and rehabilitation exercises
Manual therapy and orthopedic manipulation
General medical examinations
Massage therapy
Postural drainage and respiratory therapy (when equipped with the optional middle section)
Patient transfer and positioning aid

Technical Specs

Mains Power:	230 V / 50 Hz, 120 V / 60 Hz
Standby Consumption:	3.5 W
Input:	230 V / 1.0 A / 50 Hz, 120 V / 1.9 A / 60 Hz
Weight:	110 kg (242 lbs) plus 30 kg pallet when shipping
Dimensions*:	201 x 69 x 49 - 101 cm
Shipping Dimensions*:	219 x 84 x 75 cm
Lifting Capacity:	150 kg (330 lbs)
Electrical Safety Class:	Class II, Type B
Safety Tests:	Meets Directive 93 / 42 / EEC, Certified to CAN/CSA Standard C22.2 No. 601.1-M90x/A2
* Dimensions are listed as L x W x H

Documents

Galaxy & Montane Tables Datasheet (REV C)

Montane Table Instructions for Use - English (13-4322 - Rev A 2011)

Montane Table Manuel d'Utilisateur - Français (13-4322 - Rev A 2011)

Montane Table Gebruikershandleiding - Nederlands (13-4322 - Rev A 2011)
