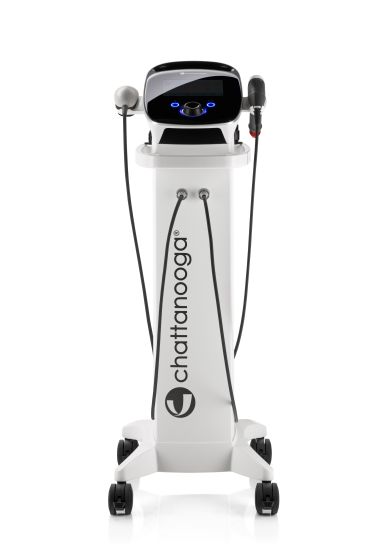

The Intelect® RPW 2 represents the next evolution in clinical shockwave therapy, engineered to deliver advanced treatment in the most compact unit currently available on the market. By merging a streamlined, modern design with superior ergonomics, this device addresses the dual needs of the practitioner and the patient. It offers a sophisticated solution for clinics looking to optimize space without compromising on the quality of care. The device prioritizes ease of use, allowing therapists to focus entirely on the patient rather than navigating complex machinery, ensuring a smooth and efficient workflow in busy medical environments.

At the core of the Intelect® RPW 2 is its ability to treat various indications using radial, pneumatically-generated, low-energy acoustic waves. These "pressure pulses" propagate radially within the tissue, generating a therapeutic effect that targets pain and inflammation at the source. For clinics seeking versatility, the unit supports the optional V-ACTOR® HF hand piece, which enables mechanical vibration for vibration massage, further expanding the range of treatable conditions and recovery modalities.

Key Features and Benefits:

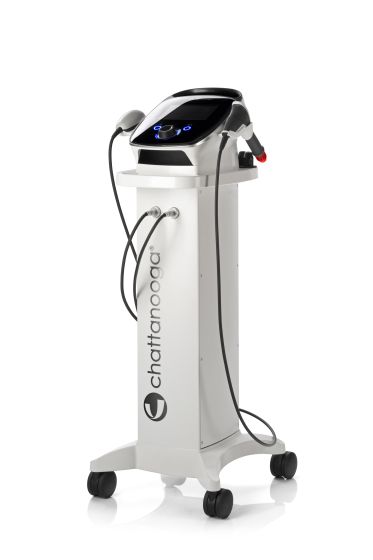

Space-Saving Design: The slim 41x42x110cm dimensions allow the unit to integrate seamlessly into any treatment room configuration.
Optimized Workflow: An ergonomic layout places the handpiece, gel, and accessories within easy reach, smoothing out the treatment process.
Falcon Handpiece Versatility: Operates across a pressure range of 0.3 to 5 bar, accommodating varying patient sensitivity levels and treatment requirements.
Specialized Applications: Capable of performing advanced Fascia and Spine treatments (Note: PERI-V-ACTOR® and SPINE-V-ACTOR® accessories must be used under 3 Bar pressure).
Smart Storage: Includes dedicated holders and a soft pouch to keep cables and accessories organized and protected.
New FALCON® Handpiece: Engineered for precision, this handpiece allows for lower bar pressures, significantly increasing the range of indications and compatible applicators for diverse treatment needs.

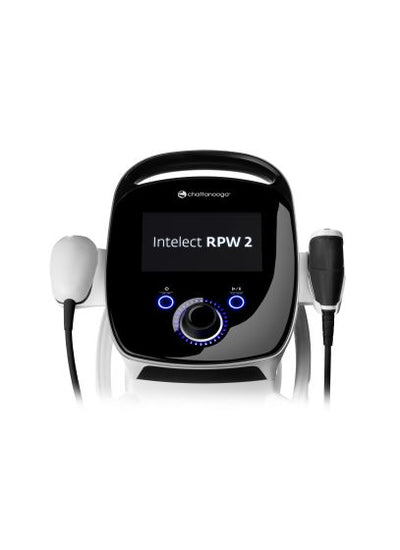

High-Resolution Touch Interface: A large 7-inch graphic color touch screen offers a responsive and clear user experience, making navigation through settings and libraries effortless.
Comprehensive Protocol Library: Access treatment pictures, anatomical references, and pathological guidelines with a single touch, ensuring you have the right information right when you need it.
Patient Comfort Mode: The unique automatic energy ramp-up feature gently increases intensity, providing a more comfortable experience for patients during the initial phase of treatment.
V-ACTOR® HF Capability: With a vibration frequency of up to 50Hz, the V-ACTOR® HF option supports effective vibration therapy and deep muscle relaxation.
Versatile Transmitter Options: Choose from 17 different transmitters to tailor treatments specifically for tendinopathies, trigger points, fascia, and spine applications.

Precision and Versatility

At the core of the system is the advanced Falcon handpiece, which delivers an extended pressure range from 0.3 to 5 bar. This wide spectrum allows for exceptional versatility in treatment protocols. You can dial down the pressure for patients with lower pain thresholds or increase it for deeper tissue work. This flexibility specifically enables targeted Fascia and Spine treatments, allowing you to address a broader variety of musculoskeletal conditions with a single device.

Streamlined Clinical Efficiency: Designed with the modern clinic in mind, the intuitive interface and ergonomic build prioritize ease of use, allowing practitioners to focus entirely on patient care rather than complex device management.
Advanced Acoustic Wave Technology: The system delivers precise radial pressure pulses that penetrate tissue to address pain and inflammation, offering a non-invasive solution for complex orthopedic conditions.
Versatile Treatment Capabilities: Effectively manage a variety of musculoskeletal issues, including Achilles Tendinopathy, Plantar Fasciitis, and disorders of tendon insertions.
Patient-Centric Comfort: The device is engineered to maximize patient comfort during procedures, ensuring a smoother and more tolerable treatment experience.
Optional Vibration Massage: Expand your therapeutic offerings with the optional V-ACTOR® HF hand piece, which enables high-frequency mechanical vibration for soothing pulse vibration massage.

Treatment Guidelines

To achieve the best clinical outcomes with the Intelect® RPW 2, follow this structured approach to therapy:

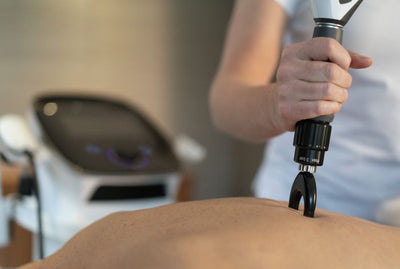

Localize the Treatment Area: Begin by palpating and accurately identifying the specific painful areas you plan to treat. Precision in localization ensures the therapeutic waves are directed exactly where they are needed most.
Select the Right Transmitter: Tailor the therapy to the patient's needs by selecting the most appropriate transmitters. Base your choice on the specific treatment goal and the depth or type of tissue being targeted.
Apply Conductive Gel: Create an optimal medium for energy transfer by applying ultrasound water-based gel to the skin directly overlying the treatment area. This ensures smooth movement of the handpiece and effective wave penetration.
Manage Intensity Levels: Prioritize patient tolerance by always starting with a lower level of intensity. Gradually ramp up the energy to therapeutic levels as the patient acclimates to the sensation.
Evaluate Function: Conclude the session by performing a post-treatment test. Assess the patient for immediate improvements in function, range of motion, and a decrease in reported pain levels.

Clinical Indications

The Intelect® RPW 2 is designed to manage and treat a variety of orthopedic and soft tissue conditions, including:

Achilles Tendinopathy: Effective management of pain and stiffness in the Achilles tendon.
Plantar Fasciitis: Targeted relief for chronic heel pain and inflammation of the plantar fascia.
Tendon Insertion Disorders: Treatment for pain located at the point where tendons attach to the bone.
Orthopedic Pain & Inflammation: General management of pain and inflammatory responses in various orthopedic conditions.
Pulse Vibration Massage: For muscle relaxation and improved circulation.

Standard Accessories

D20-S D-ACTOR® 20 mm transmitter
Ultrasound gel bottle - 250 ml
Ro40 D-Actor® 'Beam' transmitter
USB Drive Intelect Mobile 2
FALCON handpiece
Quick Start Guide Booklet Intelect RPW 2
Transmitters tray Intelect RPW 2
Gel bottle support cup Intelect RPW 2
Intelect RPW 2 Pouch

Technical Specs

2174	230V AC 50-60Hz 350VA
DIMENSIONS WXHXD	410x1100x425mm
WEIGHT	30kg
COMPRESSED AIR OUTPUT	0.3 - 5.0 bar
POWER INCREMENT SETTINGS	0.1 bar
PULSE AMPLITUDE	Approx 2mm at 3 bar, idling (without coupling)
PULSE WIDTH	Approx 6-12ms
PULSE FREQUENCY	FALCON® handpiece 1-21Hz for RPW, V-ACTOR® handpiece 1-50Hz for vibration
MODE	Single pulse or continuous
USER INTERFACE	7 inch, 800x480 pixels color graphic capacitive touch screen
CONFORMITY	This device complies with the applicable standards EN/IEC 60601-1, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1.
CLASSIFICATION ACCORDING TO MDD	class IIa device 93/42 60601-1

Chattanooga Intelect® RPW 2
