Designed for rigorous daily use in clinical environments, the Galaxy Table 3 Section High-Low offers exceptional stability and versatility for rehabilitation and therapy. This treatment table provides a solid foundation for patient care, engineered with a robust scissor steel frame that supports a lifting capacity of up to 200 kg. Its intuitive design focuses on seamless operation, allowing therapists to adjust patient positioning effortlessly while maintaining focus on the treatment.

The table prioritizes patient comfort and hygiene with two-layer padding upholstered in bio-compatible, non-flammable, and scratch-proof material available in various colors. The adjustable head section, featuring a gas spring mechanism, allows for precise angles between +40° and -70°, making it adaptable for a wide range of therapeutic procedures.

Key Features and Benefits

Designed to streamline clinical operations, the Galaxy Table integrates advanced mechanics that adapt seamlessly to the therapist's movements.

360° Accessible Height Adjustment: The table features an easy-access foot switch that is reachable from any position around the table. This allows practitioners to adjust the height (from 52 to 102 cm) instantly without breaking contact with the patient or interrupting the treatment flow.

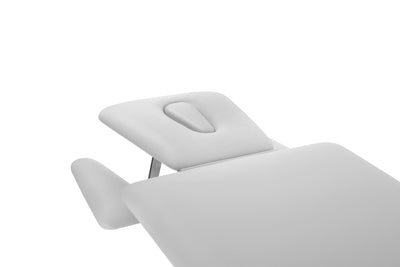

Versatile Head Section: The head section adjusts via a gas spring mechanism, offering a range from +40 degrees to -70 degrees. This flexibility accommodates various treatment positions, while the fold-down armrests significantly improve patient comfort when lying face down.
Hallotronic Lift System: Powered by the Hallotronic System, the electric high/low adjustment is smooth and quiet, capable of lifting up to 200 kg. This powerful lifting capacity ensures that patients of varying sizes can be treated safely and securely.
Personal Authorization Safety System: To prevent unauthorized usage or accidental adjustments, the table includes a Personal Authorization System equipped with two magnetic safety keys. This feature is essential for maintaining safety protocols in busy clinic environments.
Enhanced Stabilization Options: The table is equipped with two side brackets designed for the fixation of stabilization belts and elastic bands, alongside traction support sleeves, expanding the range of possible treatments and exercises.

Design & Materials: Patient Comfort and Durability

The Galaxy Table is constructed to endure rigorous daily use while providing a hygienic and comfortable surface for patients.

Advanced Upholstery Protection: The two-layer padding is covered with high-quality upholstery that is non-flammable, bio-compatible, and scratchproof. Available in many colors, this material is designed to withstand frequent cleaning and resist wear, maintaining a professional appearance over time.
Ergonomic Face Support: A dedicated face hole in the head section prevents neck strain during prone treatments. It comes with a removable face hole cover to create a uniform surface when the aperture is not in use.

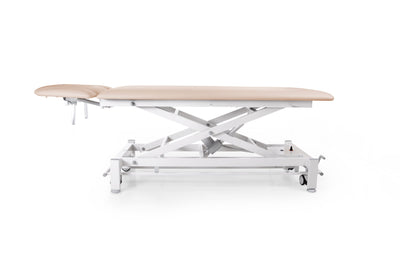

Robust Scissor Steel Frame: The core of the table is a powder-coated, stable scissor steel frame. This design maximizes vertical lift stability, ensuring the table remains rock-steady during manual manipulation.
Leveling Capabilities: Non-slip rubber feet with 1 cm height adjustment allow the table to be perfectly leveled, even on uneven clinic floors, eliminating wobbling and ensuring a secure base.

Mobility and Frame Configurations

The Galaxy Table 3 Section High-Low is available with two distinct frame options to suit the mobility needs of your facility:

Standard Mobile Frame: Features 2 small wheels and 2 legs, ideal for clinics where the table primarily stays in one location but requires occasional repositioning.
Full Mobility Frame: Includes 4 directional castors with a central brake system and 4 legs, offering maximum maneuverability for dynamic clinical spaces.

Technical Specs

Electrical

Mains Power:	100 - 240 Volt 50/60 Hz
Standby Consumption:	max. 1 A
Weight:	Standard 86 kg/4 Castors 98 kg
Shipping Weight:	Table Weight + 50 kg
Shipping Dimensions:	220 cm x 85 cm x 77 cm
Lifting Capacity:	200 kg
Height Adjustment:	52 - 102 cm
Electrical safety class:	Class II, Type B

Hydraulic Pump

Weight:	Standard 87 kg/4 Castors 96 kg
Shipping Weight:	Table Weight + 50 kg
Shipping Dimensions:	220 cm x 85 cm x 77 cm
Lifting Capacity:	200 kg
Height Adjustment:	51 - 96 cm

Documents

Galaxy & Montane Tables Datasheet (REV C)

Galaxy 3 section

Galaxy 4 section headrest

Galaxy 5 section adjustable armrests

Galaxy 2 section backrest

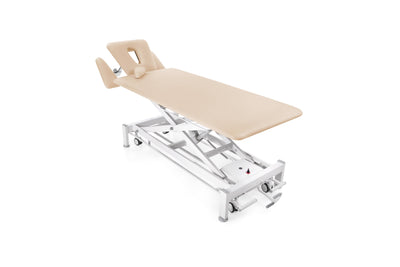

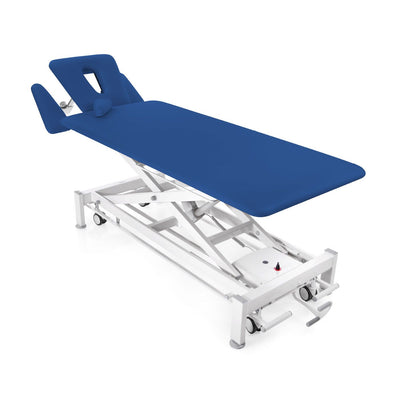

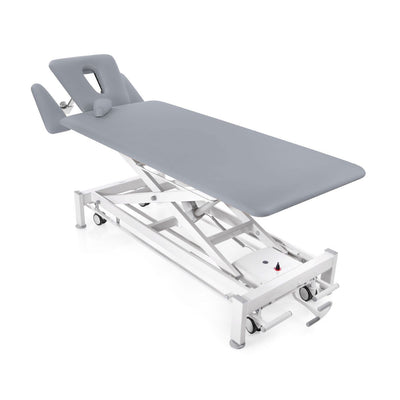

Chattanooga Galaxy Table 4 Section High-Low
