Experience a new level of precision and comfort with the redesigned 2 cm² Ultrasound Applicator, specifically engineered for the Intelect Mobile 2 unit. This applicator is crafted to enhance the practitioner's experience and improve treatment outcomes through superior design and technology. Its ergonomic shape fits naturally in your hand, reducing fatigue during prolonged use and allowing for more controlled and comfortable application. The advanced coupling detection provides real-time feedback, ensuring optimal contact and energy transfer to the patient for more effective therapy sessions.

Key Features

Ergonomic Design: Thoughtfully shaped to fit comfortably in the user's hand, minimizing strain and allowing for greater maneuverability during treatment.
Improved Coupling Detection: Features enhanced monitoring that gives immediate visual and audible feedback on the quality of the applicator's contact with the patient's skin.
Head Warming Function: The applicator head can be pre-warmed to increase patient comfort during the initial stages of therapy.
Plug-and-Play Functionality: Seamlessly integrates with the Intelect Mobile 2 device, allowing for quick and easy switching between applicators.
Ergonomic Handpiece: Shaped for comfort and control, the applicator's design minimizes hand strain and allows for easy maneuvering.
Reliable and Consistent Output: Engineered for consistent performance, delivering reliable and accurate ultrasound energy exactly where it's needed. This ensures optimal results for each and every patient.
User-Friendly Interface: The system's user-friendly interface simplifies treatment planning, making it easy to adjust settings and monitor progress during the procedure.
Versatility: With multiple applicator sizes and customizable treatment parameters, this ultrasound technology can address a wide range of aesthetic concerns on different areas of the body.

Enhanced Design and Performance

In addition to its advanced design and performance features, ultrasound technology offers several other benefits that make it a popular choice for non-invasive cosmetic procedures:

Non-Invasive: Unlike surgical procedures, ultrasound treatments are non-invasive, meaning they do not require incisions or injections. This makes them a much safer option with minimal risk of scarring or infection. Additionally, there is no downtime required for recovery, allowing patients to resume their daily activities immediately after treatment.
Minimal Discomfort: Ultrasound technology delivers controlled energy to the targeted areas without damaging surrounding tissues. This makes the procedure relatively painless compared to other methods such as laser or radiofrequency treatments. Patients may experience a mild tingling sensation during the procedure, but this can be easily managed with topical anesthesia.

Technical Specs

Ultrasound applicator Frequency	1cm²		2cm²		5cm²
Ultrasound applicator Frequency	1MHz	3MHz	1MHz	3MHz	1MHz	3MHz
Effective Radiating Area ERA INTL (cm²)	1	0.9	1.5	1	2.5	2.7
Max Output power in Continuous mode	2W	1.8W	3W	2W	5W	5.4W
Max Output power in Pulsed mode	3W	2.7W(*)	4.5W	3W	7.5W	8.1W
Max Amplitude in Continuous mode	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²
Max Amplitude in Pulsed mode	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²

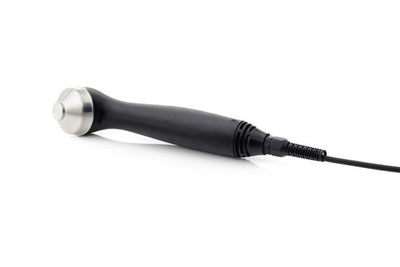

Chattanooga 2 cm² Ultrasound applicator Intelect Mobile 2
