The Intelect Mobile 2 Ultrasound is a modern and intuitive device that offers a new standard in physical medicine. Designed for both clinic and mobile use, this system provides effective ultrasound therapy with a user-friendly interface and high-quality construction. Its ergonomic design and lightweight build make it easy to transport, while the high-resolution color screen ensures clear visibility of treatment parameters. With its comprehensive protocol library and real-time feedback, clinicians can deliver precise, evidence-based treatments with confidence.

Deliver effective, targeted ultrasound therapy with the Intelect Mobile 2 Ultrasound system. Designed for licensed medical practitioners, this device offers a blend of simplicity, portability, and advanced functionality to treat pain and improve patient outcomes. Its intuitive interface and preset protocols allow for quick setup and efficient therapy delivery, while the optional battery and cart provide true mobility for use in any clinical setting.

Key Features

High-Resolution Display: Features a 7-inch color touch screen for clear, easy navigation and parameter adjustment.
Ergonomic Design: Lightweight and portable, making it ideal for use across multiple treatment rooms or on the go.
Evidence-Based Protocols: Comes pre-loaded with a comprehensive library of treatment protocols, guiding dosage and application.
Customizable Settings: Allows therapists to save their own custom protocols for quick and easy access during future sessions.
Dual-Frequency Ultrasound: Choose between 1 MHz for deeper tissue penetration or 3 MHz for superficial treatments, allowing for versatile application across various conditions.
Flexible Duty Cycles: Select from pulsed (10%, 20%, 50%) or continuous (100%) duty cycles to precisely manage thermal effects and treatment intensity.
Intelligent Coupling Detection: Ensure treatment efficacy with visual and audible alerts that notify you if the applicator loses contact with the skin, pausing the timer to guarantee accurate dosage.
Intuitive User Interface: Navigate settings and protocols effortlessly with a clear display, quick-access buttons, and pre-loaded treatment guidelines to streamline your workflow.
Standard 5cm² Applicator: Comes ready to use with a 5cm² ultrasound head, with other sizes available as optional accessories to suit different treatment areas.
Truly Mobile Design: An optional built-in battery and custom cart make it easy to transport the unit between treatment rooms or take it on the go.

Indications

The Intelect Mobile 2 Ultrasound is indicated for the following therapeutic applications:

Relief of pain and muscle spasms.
Alleviation of pain from joint contracture.
Treatment of pain associated with ligament sprains, tendinitis, and

Designed for the Modern Practitioner

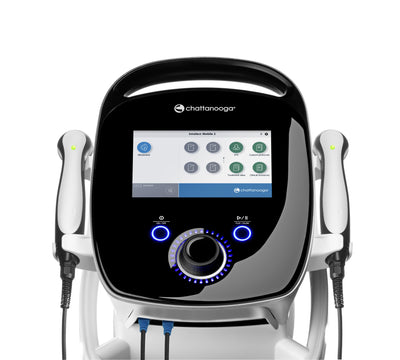

Intuitive Operation: Navigate effortlessly with a full-color 7" high-resolution touchscreen and an intelligent interface that indicates device status with interactive lights.

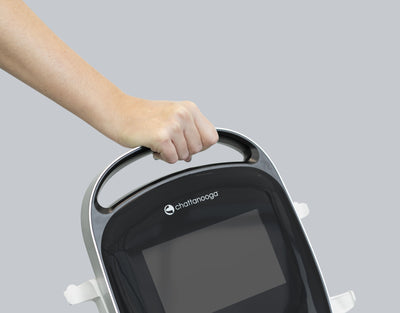

Ergonomic and Mobile: Its lightweight build and ergonomically designed handle make transportation simple, perfect for in-clinic or home use.
Clinical Guidance: Utilize the built-in Suggested Protocol Setting (SPS) and a high-resolution anatomical library to enhance patient education and ensure precise treatment.

Smart and Adaptable Technology

Future-Proof Software: Keep your device at the forefront of technology with easily upgradable software.
Effortless Data Management: Store treatment data and custom protocols directly on the device, with simple import/export capabilities via Bluetooth.
Home Use Compliant: Fully compliant with IEC 60601-1-11 standards, allowing you to confidently extend your services to patients in their own homes.

What's Included:

5 cm² Ultrasound Applicator: Ergonomically designed for comfortable handling and optimal energy transmission during treatment.
250 ml Ultrasound Gel Bottle: A generous supply of high-quality coupling gel to ensure effective and consistent therapy sessions.
USB Drive: Comes loaded with the Intelect Mobile 2 user manual, providing easy access to all the information you need.
Printed Quick Start Guide: Get your device up and running in minutes with this straightforward, easy-to-follow guide.
EU Power Cord: A compatible power supply to ensure your device is always ready for use.

General

Main input voltages	100-240V AC, 1.0 to 0.42A, 50/60Hz
Electrical Class	Class II
Mode of operation	Continuous
Dimensions / Weight (no battery, excluding cart)	340 x 355 x 150 mm / 3.1 Kg
Conformity	This device complies with the applicable standards EN/IEC 60601-1 and 60601-1-11, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1
CE 2797	Classification according to MDD : class IIa device 93/42 60601-1
Legal manufacturer	DJO France SAS - CE 2797

Ultrasound

FREQUENCY	1MHz; 3 MHz
DUTY CYCLES	10%, 20%, 50%, Continuous
PULSE REPETITION RATE	16,48, or 100 Hz
PULSE DURATION	1-31.25 ms - Max (ON): 31.25 ms - Min (OFF): 5 ms

Ultrasound applicator

	1cm²		2cm²		5cm²
Ultrasound applicator Frequency	1MHz	3MHz	1MHz	3MHz	1MHz	3MHz
Effective Radiating Area ERA INTL (cm²)	1	0.9	1.5	1	2.5	2.7
Max Output power in Continuous mode	2W	1.8W	3W	2W	5W	5.4W
Max Output power in Pulsed mode	3W	2.7W(*)	4.5W	3W	7.5W	8.1W
Max Amplitude in Continuous mode	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²	2W/cm²
Max Amplitude in Pulsed mode	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²	3W/cm²

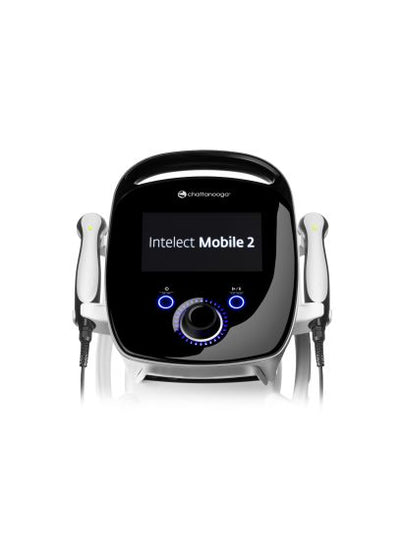

Chattanooga Intelect Mobile 2 Ultrasound
